Norsat International Inc.

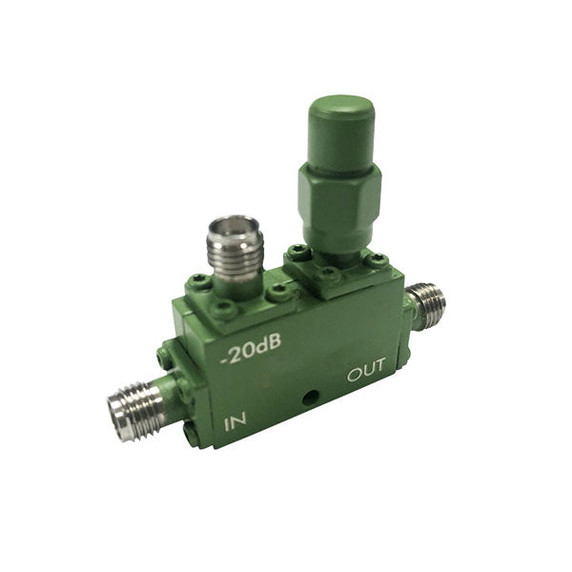

Norsat COU20F Directional Coupler

Name: Norsat COU20F Directional Coupler
Brand: Norsat International Inc.
SKU: COU20F
Price: 880 USD
Availability: InStock

No reviews yet

Product Code: COU20F

Condition: New

Availability: 10 - 12 Weeks

Weight: 0.00 KGS

Width: 1.52 (cm)

Height: 0.97 (cm)

Depth: 2.54 (cm)

$880.00

KEY SPECIFICATIONS
Bandwith	12 GHz
Frequency	6 - 18 GHz
Noise Figure	N/A
RF SPECIFICATIONS
Gain	N/A
Gain Ripple	N/A
Input VSWR	1.43:1 max.
Insertion Loss	0.65 dB max.
Isolation	36 dB typ.
Ripple	N/A
ELECTRICAL SPECIFICATIONS
Coupling	20 ± 1.25 dB
Impedance	50 ohms
Power Handling Avg	50 W max.
INTERFACE SPECIFICATIONS
Connectors Type	SMA-F
ENVIRONMENTAL SPECIFICATIONS
Indoor Status	Yes
PHYSICAL SPECIFICATIONS
Product Height	9.7 mm
Product Length	25.4 mm
Product Width	15.2 mm
ADDITIONAL INFORMATION
ECCN Number	EAR99
Harmonized System Code	8525503035
Unit Packaging Weight	22.7 g
