Norsat International Inc.

Norsat 3000 Series BDC-3000ND C-Band Single-band BDC

No reviews yet
Product Code: BDC-3000ND
Availability: YES
Weight: 0.70 KGS
Width: 9.40 (cm)
Height: 4.60 (cm)
Depth: 12.90 (cm)
$1,760.00

Norsat’s Block Downconverters (BDCs) provide high performance signal conversion for satellite communication.

KEY SPECIFICATIONS
Product Family 3000 Series
Band C-Band
# of onboard LOs Single-band
LO Stability +/- 25 kHz
Noise Figure 10 dB
Input Frequency - Band 1 C-Band: 3.40 - 4.20 GHz
Output Frequency 1 L-Band: 950 - 1750 MHz

RF SPECIFICATIONS
LO Frequency 1 5.15 GHz
Phase Noise @ 1KHz offset -73 dBc/Hz
Phase Noise @ 10KHz offset -90 dBc/Hz
Phase Noise @ 100KHz offset -100 dBc/Hz
Conversion Gain 40 dBm
Gain Variation over temperature +/- 2.5 dBm at any constant frequency
Input VSWR 2.0 : 1
Output VSWR 2.0 : 1
Output P1dB compression point 6 dBm

ELECTRICAL SPECIFICATIONS
Power Requirements 15 - 24 V
Current Drain 200 mA

INTERFACE SPECIFICATIONS
RF Input Connector SMA
RF Output Connector N-50 Ohm

M & C SPECIFICATIONS
Input Power Port DC Power via Feed-Through & Output Connector

ENVIRONMENTAL SPECIFICATIONS
Temperature - Operational -40 to +60°C

PHYSICAL SPECIFICATIONS

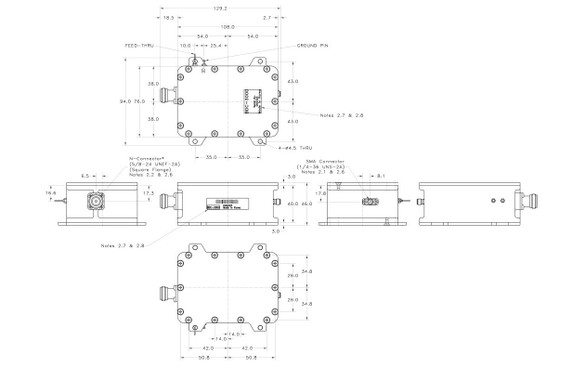

Dimensions (L x W x H) 129 x 94 x 46 mm
Weight 700 g
