Norsat International Inc.
Norsat BUC-100376 6W Ka-Band BUC BUC-100376
Product Code:
BUC-100376
Condition:
New
Availability:
10 - 12 Weeks
Weight:
2.40 KGS
Width:
14.00
(cm)
Height:
5.80
(cm)
Depth:
18.10
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| External Ref Freq | 10 MHz, - 5 to + 5 dBm |
| Input Frequency Band 1 | 950 - 1950 MHz |
| LO Frequency 1 | 26.55 GHz |
| LO Frequency 2 | 27.40 GHz |
| LO Frequency 3 | 28.05 GHz |
| LO Frequency 4 | 29.05 GHz |
| LO Switching | Electronically and Manually Switchable |
| Output Frequency Band 1 | 27.5 - 31.0 GHz |
| Output Power Rated | 6W |
| Product Family | BUC |
| Reference Type | External Reference |
| RF SPECIFICATIONS | |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 62 dB |
| Gain Flatness (40Mhz) | ±0.5 dB max |
| Gain Flatness (Over Full Band) | ±1.8 dB max |
| Gain Flatness (Over Temperature) | ±1.5 dB typ., ±1.8 dB max |
| IMD3 | -25 dBc max (two tones) 2 signals 5 MHz apart from PLin |
| Input VSWR | 1.5 : 1 max |
| Mute | Shut off the BUC if L.O. unlocked. |
| Noise Figure | 15 dB max. |
| Noise Power Density Rx | -157 dBm/Hz max. |
| Noise Power Density Tx | -66 dBm/Hz max. |
| Output Power | +38 dBm min. |
| Output VSWR | 1.5 : 1 max. |
| Phase Noise 0.01Khz Offset Max | -55 dBc/Hz |
| Phase Noise 0.1Khz Offset Max | -65 dBc/Hz |
| Phase Noise 1Khz Offset Max | -75 dBc/Hz |
| Phase Noise 10Khz Offset Max | -85 dBc/Hz |
| Phase Noise 100Khz Offset Max | -95 dBc/Hz |
| Phase Noise 1000Khz Offset Max | -115 dBc/Hz |
| Spectral Regrowth | -30 dBc (QPSK at 1.5x and OQPSK at 1.0x symbol rate offset with 2dB back-off from rated output power) |
| Spurious | -50 dBc max. |
| ELECTRICAL SPECIFICATIONS | |
| Input Power | via IFL Cable |
| Power Consumption | 68 W max |
| Power Requirements | +15 to +60V DC |
| INTERFACE SPECIFICATIONS | |
| Input Connector | N-Connector |
| M&C Interface | RS-232 and RS-485, Ethernet (HTTP and SNMP) |
| Output Connector | WR-28G |
| Status LED | Status LED RED: SSPA MUTED Status LED GREEN: SSPA OK L.O. GREEN: ALL OK L.O. 26.55 GHz L.O. GREEN BLINKING: ALL OK L.O. 27.40 GHz L.O. YELLOW: ALL OK L.O. 28.05 GHz L.O. YELLOW BLINKING: ALL OK L.O. 29.05 GHz Internal 10MHz Auto Detect GREEN: EXTERNAL DETECTED Internal 10MHz Auto Detect GREEN BLINKING: ENABLED |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP67 |
| Temperature Operational | -40°C to +55°C |
| Temperature Storage | -55°C to +85°C |
| Vibration And Shock | Complies with MIL-STD-810E |

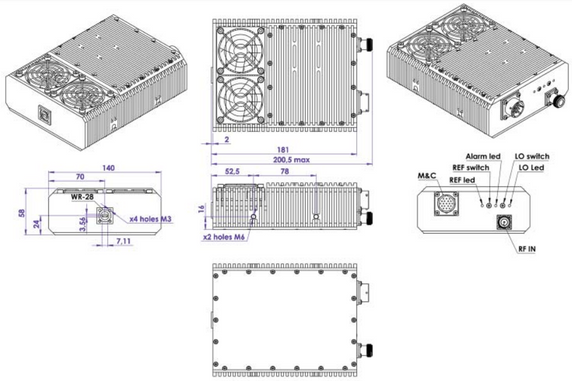

| PHYSICAL SPECIFICATIONS | |
| Product Height | 58 mm |
| Product Length | 181 mm |
| Product Weight | 2.4 kg |
| Product Width | 140 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in United States of America |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
