Norsat International Inc.

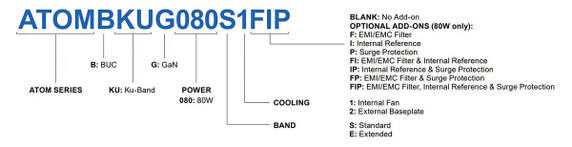

Norsat ATOMBKUG080S1 80W Ku-Band BUC
Product Code:
ATOMBKUG080S1
Availability:
YES
Weight:
2.30 KGS
Width:
9.40
(cm)
Height:
15.60
(cm)
Depth:
16.40
(cm)
$21,186.83
The Norsat ATOM series of GaN block upconverters (BUC) are among the smallest, lightest, and most energy efficient transmitters available. The high efficiency of ATOM reduces power consumption significantly, delivering considerable operational cost savings over the lifetime of the device.
| KEY SPECIFICATIONS | |
|---|---|
| Band | Ku-Band |
| Input Frequency Band 1 | L-Band: 950 - 1450 MHz |
| Output Frequency 1 | Ku-Band: 14.0 - 14.50 GHz |
| Output Power Rated | 80W |
| RF SPECIFICATIONS | |
|---|---|
| Input VSWR | 1.5 : 1 |
| Noise Power Density | -65 dBm/Hz in Tx, -156 dBm/Hz in Rx |
| Output Power Saturated | 49 dBm min. |
| Output VSWR | 2.5 : 1 |
| Spurious | In-Band: ≤ -60 dBc; Out-of-Band: ≤ -60 dBc |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| Input Voltage | 18V to + 56V DC |
| Power Connector | MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-4P |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| Humidity | 100% condensing |
| Temperature Operational | -40 to +60°C |
| Temperature Storage | -50 to +80°C |
| Weight | 2.8kg |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| Cooling | Internal Fan |
| Dimensions (LxWxH) | 164 x 94 x 156 mm |
| Enclosed Accessories | Screws, Gasket, M&C Connector, Power Connector |
5 customers are viewing this product
Details
The Norsat ATOM series of GaN block upconverters (BUC) are among the smallest, lightest, and most energy efficient transmitters available. The high efficiency of ATOM reduces power consumption significantly, delivering considerable operational cost savings over the lifetime of the device.
| KEY SPECIFICATIONS | |
|---|---|
| Band | Ku-Band |
| Input Frequency Band 1 | L-Band: 950 - 1450 MHz |
| Output Frequency 1 | Ku-Band: 14.0 - 14.50 GHz |
| Output Power Rated | 80W |
| RF SPECIFICATIONS | |
|---|---|
| Input VSWR | 1.5 : 1 |
| Noise Power Density | -65 dBm/Hz in Tx, -156 dBm/Hz in Rx |
| Output Power Saturated | 49 dBm min. |
| Output VSWR | 2.5 : 1 |
| Spurious | In-Band: ≤ -60 dBc; Out-of-Band: ≤ -60 dBc |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| Input Voltage | 18V to + 56V DC |
| Power Connector | MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-4P |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| Humidity | 100% condensing |
| Temperature Operational | -40 to +60°C |
| Temperature Storage | -50 to +80°C |
| Weight | 2.8kg |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| Cooling | Internal Fan |
| Dimensions (LxWxH) | 164 x 94 x 156 mm |
| Enclosed Accessories | Screws, Gasket, M&C Connector, Power Connector |
Download
| Download Name | |
| Norsat ATOMBKUG080S1 80W Ku-Band BUC Data Sheet | |
