Norsat International Inc.

Norsat ATOMBKUG080E1 80W Ku-Band BUC

(No reviews yet) Write a Review
SKU:
ATOMBKUG080E1
MPN:
ATOMBKUG080E1
Availability:
YES
Weight:
2.30 KGS
Width:
9.40 (cm)
Height:
15.60 (cm)
Depth:
16.40 (cm)
  • Norsat ATOMBKUG080E1 80W Ku-Band BUC
  • Norsat ATOMBKUG080E1 80W Ku-Band BUC
$21,186.83

Description

The Norsat ATOM series of GaN block upconverters (BUC) are among the smallest, lightest, and most energy efficient transmitters available. The high efficiency of ATOM reduces power consumption significantly, delivering considerable operational cost savings over the lifetime of the device.

ATOM BUC 80W, Ku-Band GaN, 13.75-14.50 GHz, INT FAN,N-CONN,WR75

KEY SPECIFICATIONS
Product Family ATOM
Band Ku-Band
Output Power (Rated) 80W
Input Frequency - Band 1 L-Band: 950 - 1700 MHz
Output Frequency 1 Ku-Band: 13.75 - 14.50 GHz

RF SPECIFICATIONS
Output Power (Saturated) 49 dBm min.
Noise Power Density -65 dBm/Hz in Tx, -156 dBm/Hz in Rx
Phase Noise @ 100Hz offset -63 dBc/Hz
Phase Noise @ 1KHz offset -73 dBc/Hz
Phase Noise @ 10KHz offset -83 dBc/Hz
Phase Noise @ 100KHz offset -93 dBc/Hz
Phase Noise @ 1MHz offset -103 dBc/Hz
Gain Variation over operating band ≤ 3 dB p-p
Gain Variation over temperature ≤ 3.0 dB p-p
Input VSWR 1.5 : 1
Output VSWR 2.5 : 1
Spurious In-Band: ≤ -60 dBc; Out-of-Band: ≤ -60 dBc

ELECTRICAL SPECIFICATIONS
Input Voltage 18V to + 56V DC
Power Consumption @Psat 370 W max.
Power Connector MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-4P

INTERFACE SPECIFICATIONS
RF Input Connector N- 50 Ohm
RF Output Connector WR-75 waveguide grooved

M & C SPECIFICATIONS
M & C Interface RS-232 & RS-485 & Ethernet
M & C Connector MIL-26482 Series 1 receptacle, Shell size 12, 10 Pins(RS-485 & RS-232); MIL-26482 Series 1 receptacle, Shell Size 10, 6 Pins(Ethernet)
Mute Control Fully configurable

ENVIRONMENTAL SPECIFICATIONS
Temperature - Operational -40 to +60°C
Temperature - Storage -50 to +80°C
Humidity 100% condensing

PHYSICAL SPECIFICATIONS
Cooling Internal Fan
Enclosed Accessories Screws, Gasket, M&C Connector, Power Connector

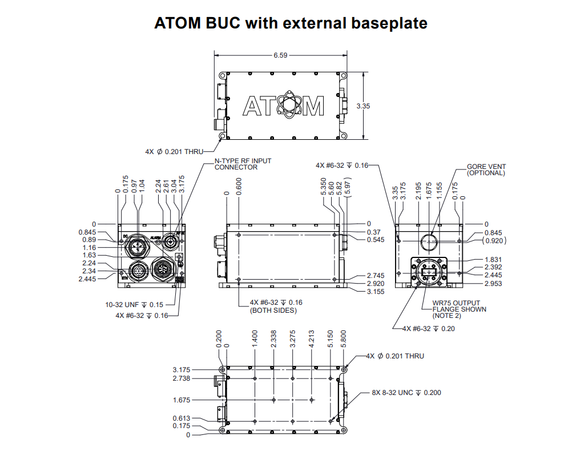

Dimensions (L x W x H) 164 x 94 x 156 mm
Weight 2.30 kg
