Norsat International Inc.

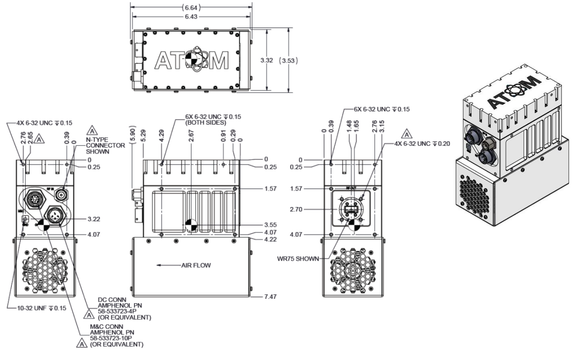

Norsat ATOM-100046 ATOM 40W Ku-Band BUC
Product Code:
ATOM-100046
Condition:
New
Availability:
10 - 12 Weeks
Weight:
2.65 KGS
Width:
9.00
(cm)
Height:
19.00
(cm)
Depth:
16.90
(cm)
$0.00
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| External Ref Freq | 10 MHz (sine-wave), - 5 to +5 dBm |
| Input Frequency Band 1 | 950 - 1700 MHz |
| LO Frequency 1 | 12.80 GHz |
| Output Frequency Band 1 | 13.75 - 14.50 GHz |
| Output Power Rated | 40W |
| RF SPECIFICATIONS | |
| Gain Flatness (40Mhz) | ≤ 2.0 dB p-p |
| Gain Flatness (Over Full Band) | ≤ 6.0 dB p-p |
| Gain Flatness (Over Temperature) | ≤ 3.0 dB p-p |
| Input VSWR | 2.0 : 1 max. |
| Linear Gain | ≥ 60 dB |
| Noise Power Density | -65 dBm/Hz in Tx -65 dBm/Hz in Rx |
| Output P1db | 46 dBm min. |
| Output Power Psat | 47 dBm min. |
| Output Spurious In Band | ≤ -55 dBc |
| Output Spurious Out Of Band P1db | ≤ -55 dBc |
| Output VSWR | 2.0 : 1 max. |
| Phase Noise 100Khz Offset Max | -92 dBc/Hz |
| Phase Noise 1000Khz Offset Max | -102 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Power Connector | MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P |
| Power Consumption Psat | 270 W max. @ P1dB 305 W max. @ Psat |
| Power Requirements | +18 to +56V DC |
| Power Supply | via power connector |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| Included Configuration Add Ons | EMI/EMC Filter Fast Switch High Temperature |
| M&C Connector | MIL-26482 Series 1 receptacle, Shell Size 12, 10 Pins, 58-533723-10P |
| M&C Interface | RS-485 & RS-232 |
| Mute Control | Fully configurable, (mute enable: high: 3.0 - 5.0 V or low: 0.0 - 0.8 V, mute default: enabled or disabled) |
| RF Output Connector | WR-75 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 100% condensing |
| Temperature Operational | -40 to +70°C with high temperature option |
| Temperature Storage | -50 to +80°C |
| PHYSICAL SPECIFICATIONS | |
| Enclosed Accessories | Screws, Gasket, M&C Connector, Power Connector |
| Product Height | 190 mm |
| Product Length | 169 mm |
| Product Weight | < 2.65 kg |
| Product Width | 90 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| External Ref Freq | 10 MHz (sine-wave), - 5 to +5 dBm |
| Input Frequency Band 1 | 950 - 1700 MHz |
| LO Frequency 1 | 12.80 GHz |
| Output Frequency Band 1 | 13.75 - 14.50 GHz |
| Output Power Rated | 40W |
| RF SPECIFICATIONS | |
| Gain Flatness (40Mhz) | ≤ 2.0 dB p-p |
| Gain Flatness (Over Full Band) | ≤ 6.0 dB p-p |
| Gain Flatness (Over Temperature) | ≤ 3.0 dB p-p |
| Input VSWR | 2.0 : 1 max. |
| Linear Gain | ≥ 60 dB |
| Noise Power Density | -65 dBm/Hz in Tx -65 dBm/Hz in Rx |
| Output P1db | 46 dBm min. |
| Output Power Psat | 47 dBm min. |
| Output Spurious In Band | ≤ -55 dBc |
| Output Spurious Out Of Band P1db | ≤ -55 dBc |
| Output VSWR | 2.0 : 1 max. |
| Phase Noise 100Khz Offset Max | -92 dBc/Hz |
| Phase Noise 1000Khz Offset Max | -102 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Power Connector | MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P |
| Power Consumption Psat | 270 W max. @ P1dB 305 W max. @ Psat |
| Power Requirements | +18 to +56V DC |
| Power Supply | via power connector |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| Included Configuration Add Ons | EMI/EMC Filter Fast Switch High Temperature |
| M&C Connector | MIL-26482 Series 1 receptacle, Shell Size 12, 10 Pins, 58-533723-10P |
| M&C Interface | RS-485 & RS-232 |
| Mute Control | Fully configurable, (mute enable: high: 3.0 - 5.0 V or low: 0.0 - 0.8 V, mute default: enabled or disabled) |
| RF Output Connector | WR-75 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 100% condensing |
| Temperature Operational | -40 to +70°C with high temperature option |
| Temperature Storage | -50 to +80°C |
| PHYSICAL SPECIFICATIONS | |
| Enclosed Accessories | Screws, Gasket, M&C Connector, Power Connector |
| Product Height | 190 mm |
| Product Length | 169 mm |
| Product Weight | < 2.65 kg |
| Product Width | 90 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
