Norsat International Inc.
Norsat 9500HBF-4 - 9000 Single-Band Ka-Band PLL LNB
Product Code:
9500HBF-4
Condition:
New
Availability:
YES
Weight:
0.42 KGS
Width:
12.00
(cm)
Height:
4.50
(cm)
Depth:
6.00
(cm)
$862.00
Norsat 9500HBF-4 - 9000 Single-Band Ka-Band PLL LNB
Typical Specifications
| KEY SPECIFICATIONS | |
|---|---|
| Band | Ka-Band |
| Input Frequency Band 1 | Ka-Band: 19.20 - 20.20 GHz |
| Lo Stability | +/- 50 kHz |
| Lo Type | PLL |
| Noise Figure | 1.3dB typ. |
| Output Frequency 1 | L-Band: 950 - 1950 MHz |
| RF SPECIFICATIONS | |
|---|---|
| Conversion Gain | 60 dB typ |
| Lo Frequency 1 | 18.25 GHz |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| Current Drain | 400 mA |
| Power Requirements | 12 - 24 V |
| INTERFACE SPECIFICATIONS | |
|---|---|
| RF Input Connector | WR-42 waveguide grooved |
| RF Output Connector | F-75 Ohm |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| Humidity | 0 - 95% |
| Temperature Operational | -40 to +60°C |
| Weight | 420g |
| PHYSICAL SPECIFICATIONS | |
|---|---|

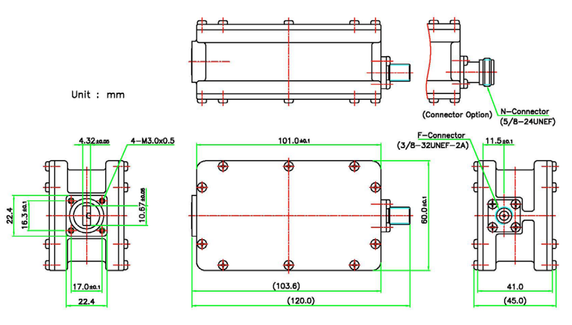

| Dimensions (LxWxH) | 120 x 60 x 45 mm |
5 customers are viewing this product
Details
Norsat 9500HBF-4 - 9000 Single-Band Ka-Band PLL LNB
Typical Specifications
| KEY SPECIFICATIONS | |
|---|---|
| Band | Ka-Band |
| Input Frequency Band 1 | Ka-Band: 19.20 - 20.20 GHz |
| Lo Stability | +/- 50 kHz |
| Lo Type | PLL |
| Noise Figure | 1.3dB typ. |
| Output Frequency 1 | L-Band: 950 - 1950 MHz |
| RF SPECIFICATIONS | |
|---|---|
| Conversion Gain | 60 dB typ |
| Lo Frequency 1 | 18.25 GHz |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| Current Drain | 400 mA |
| Power Requirements | 12 - 24 V |
| INTERFACE SPECIFICATIONS | |
|---|---|
| RF Input Connector | WR-42 waveguide grooved |
| RF Output Connector | F-75 Ohm |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| Humidity | 0 - 95% |
| Temperature Operational | -40 to +60°C |
| Weight | 420g |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| Dimensions (LxWxH) | 120 x 60 x 45 mm |
