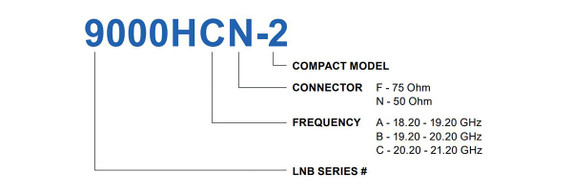

Norsat 9000 Series 9000HCF-2 Ka-Band Single-Band LNB

No reviews yet
Product Code: 9000HCF-2
Availability: YES
Weight: 0.35 KGS
Width: 4.20 (cm)
Height: 4.20 (cm)
Depth: 11.10 (cm)
$1,091.00

Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ka-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNBs. KA-BAND PLL LNB; 20.2-21.2GHZ; LO: +/-60KHZ; NF 1.8DB; F-CONN



KEY SPECIFICATIONS
Product Family 9000 Series
Band Ka-Band
LO Type PLL
# of onboard LOs Single-band
LO Stability +/- 60 kHz
Noise Figure 1.5dB
Input Frequency - Band 1 Ka-Band: 20.20 - 21.20 GHz
Output Frequency 1 L-Band: 950 - 1950 MHz

RF SPECIFICATIONS
LO Frequency 1 19.25 GHz
Phase Noise @ 1KHz offset -75 dBc/Hz
Phase Noise @ 10KHz offset -80 dBc/Hz
Phase Noise @ 100KHz offset -100 dBc/Hz
Conversion Gain 55 dB typ
Gain Variation over operating band 4.0 dB p-p
Gain Variation over temperature 5 dB max (-40°C to +60°C)
Input VSWR 2.2 : 1
Output VSWR 2.0 : 1
Output P1dB compression point 3 dBm

ELECTRICAL SPECIFICATIONS
Power Requirements 15 - 24 V
Current Drain 160 mA

INTERFACE SPECIFICATIONS
RF Input Connector WR-42 waveguide grooved
RF Output Connector F-25 Ohm

M & C SPECIFICATIONS
LED Indicators None

ENVIRONMENTAL SPECIFICATIONS
Temperature - Operational -40 to +60°C

PHYSICAL SPECIFICATIONS
Dimensions (L x W x H) 111 x 42 x 42 mm
Weight 350 g
