Norsat International Inc.
Norsat 9000-100129 9000 Single Band Ka-Band EXT REF LNB
Product Code:
9000-100129
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.42 KGS
Width:
6.00
(cm)
Height:
4.50
(cm)
Depth:
10.36
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| External Ref Freq | 10 MHz (sine-wave), - 5 to +5 dBm |
| Input Frequency Band 1 | 17.7 - 18.7 GHz |
| LO Frequency 1 | 16.725 GHz |
| LO Stability | Ext Ref |
| LO Type | EXT |
| Noise Figure Max | 1.5 dB (with waveguide isolator) |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 950 - 1950 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Full Band) | ≤ 4 dB p-p max. |
| Gain Ripple At Per 36Mhz | ≤ 1 dB p-p max. |
| Image Rejection | 40 dBc min. |
| Input VSWR | 1.35 : 1 max. (with waveguide isolator) |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.5 : 1 max. |
| Phase Noise 1Khz Offset Max | -70 dBc/Hz |
| Phase Noise 10Khz Offset Max | -80 dBc/Hz |
| Phase Noise 100Khz Offset Max | -95 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 450 mA max. |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| RF Input Connector | WR-42 waveguide grooved |
| M AND C SPECIFICATIONS | |
| Led Indicators | None |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +70°C |

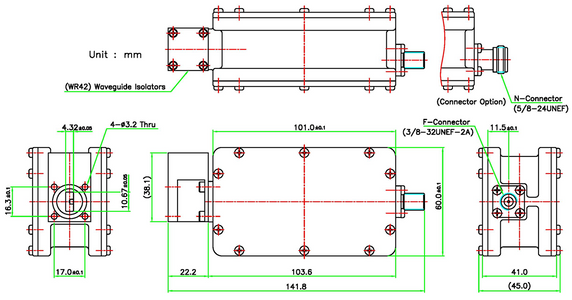

| PHYSICAL SPECIFICATIONS | |
| Product Height | 45.0 mm |
| Product Length | 103.6 mm |
| Product Weight | 0.42 kg |
| Product Width | 60.0 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.36 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 0.9 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Weight | 0.7 kg |
| Warranty | 1 Year |
