Norsat 7000XTEF Triple-Band Ka-Band PLL LNB - 7000 Series

No reviews yet

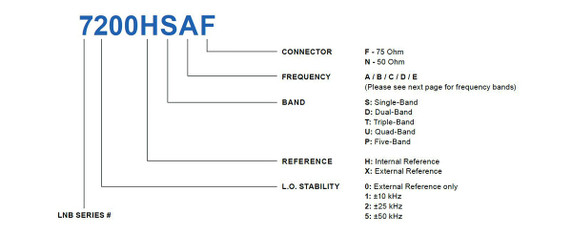

Product Code: 7000XTEF
Condition: New
Weight: 0.40 KGS
Width: 11.30 (cm)
Height: 4.40 (cm)
Depth: 4.30 (cm)
$1,700.00
Norsat 7000 Triple-Band Ka-Band PLL LNB - 7000 Series

KEY SPECIFICATIONS

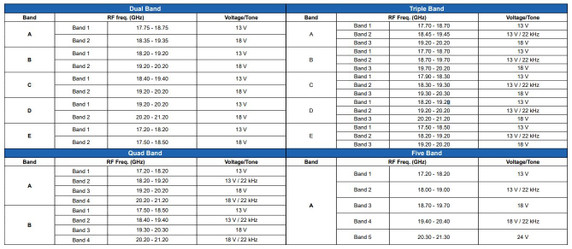

Band Ka-Band
Input Frequency Band 1 Ka-Band: 17.5 - 18.5 GHz
Input Frequency Band 2 Ka-Band: 18.2 - 19.2 GHz
Input Frequency Band 3 Ka-Band: 19.2 - 20.2 GHz
L.O. Stability External Reference
L.O. Type PLL
Noise Figure 1.3 dB typ., 1.5 dB max. at room temp. @ CF
Output Frequency 1 L-Band: 950 - 1950 MHz
Output Frequency 2 L-Band: 950 - 1950 MHz
Output Frequency 3 L-Band: 950 - 1950 MHz
Tone Frequency 22 kHz ± 4 kHz
RF SPECIFICATIONS
Control Signal 1 13 V
Control Signal 2 13 V / 22 KHz Tone
Control Signal 3 18 V
Conversion Gain 60 dB typ., 55 dB min, 65 dB max.
Gain Flatness (Over Full Band) ≤ 5 dB p-p max.
Input VSWR 2.5 : 1 max.
L.O. Frequency 1 16.55 GHz
L.O. Frequency 2 17.25 GHz
L.O. Frequency 3 18.25 GHz
Output P1dB + 5 dBm min.
Phase Noise 100khz Offset -93 dBc/Hz
Phase Noise 10khz Offset -83 dBc/Hz
Phase Noise 1khz Offset -73 dBc/Hz
ELECTRICAL SPECIFICATIONS
Current Drain 450 mA Max
Power Requirements 12 - 24 V
Power Requirements Tone Frequency 22 kHz ± 4 kHz Amplitude Voltage 0.6 ± 0.2 V Duty Cycle 50% ± 10%
INTERFACE SPECIFICATIONS
RF Input Connector WR-42 Waveguide Grooved
RF Output Connector F-Connector (75 Ohm)
ENVIRONMENTAL SPECIFICATIONS
Humidity 0 - 100%
Temperature Operational -40 to +70˚C
Temperature Storage -45 to +80˚C
Weight 400 g Max
PHYSICAL SPECIFICATIONS
Dimensions (LxWxH) 4.67 x 1.72 x 1.70 in
