Norsat International Inc.
Norsat 3500N-SBPF-5C-Band 5G LNB and Switching Bandpass Filter
Product Code:
3500N-SBPF-5
Condition:
New
Availability:
YES
Weight:
0.50 KGS
Width:
15.90
(cm)
Height:
7.00
(cm)
Depth:
9.85
(cm)
$2,860.00
Norsat 3000-sBPF Series C-Band 5G LNB and Switching Bandpass Filter
Norsat’s Low Noise Block downconverter plus Switching Band Pass Filter provide signal reception for satellite communications while rejecting terrestrial interference in C-Band. We offer premium performance and reliability in the smallest form factor possible. Backed by a 3 year warranty and over forty years of experience as the industry’s leading provider of high performance microwave components. 3200-sBPF Series.
|
KEY SPECIFICATIONS |
|
|
Band |
C-Band |
|
Input Frequency Band 1 |
C-Band: 3.40 - 4.20 GHz |
|
Input Frequency Band 2 |
C-Band: 3.90 - 4.20 GHz |
|
Lo Stability |
± 100 kHz max. |
|
Lo Type |
PLL |
|
Noise Figure |
37K typ. |
|
Output Frequency 1 |
L-Band: 950 - 1150 MHz |
|
Output Frequency 2 |
Band 1: 13V/ Band 2: 18V |
|
Product Family |
3000-SBPF Series |
|
RF SPECIFICATIONS |
|
|
Conversion Gain |
60 dB typ., 55 dB min., 70 dB max. |
|
Input VSWR |
2.2 : 1 |
|
Lo Frequency 1 |
5.15 GHz |
|
Lo Frequency 2 |
5.15 GHz |
|
Output VSWR |
2.5 : 1 |
|
ELECTRICAL SPECIFICATIONS |
|
|
Current Drain |
400 mA |
|
Input Voltage |
Band 1: 13V/ Band 2: 18V |
|
Power Requirements |
12 - 24 V |
|
INTERFACE SPECIFICATIONS |
|
|
RF Input Connector |
WR-229 waveguide grooved |
|
RF Output Connector |
N-50 Ohm |
|
ENVIRONMENTAL SPECIFICATIONS |
|
|
Temperature Operational |
-40 to +60°C |
|
Temperature Storage |
-50 to +70°C |
|

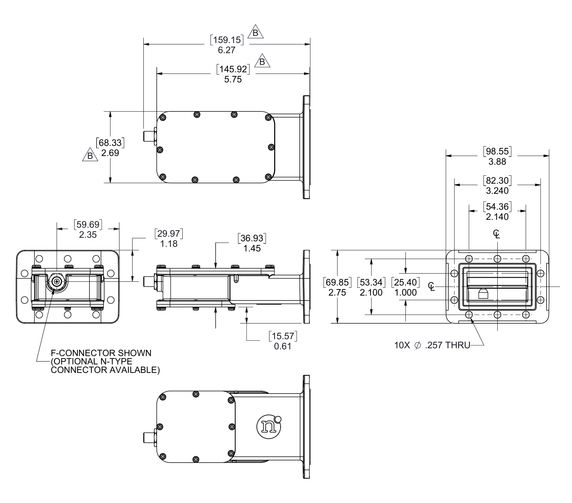

PHYSICAL SPECIFICATIONS |
|
|
Dimensions (LxWxH) |
159 x 98.5 x 70 mm |
5 customers are viewing this product
Details
Norsat 3000-sBPF Series C-Band 5G LNB and Switching Bandpass Filter
Norsat’s Low Noise Block downconverter plus Switching Band Pass Filter provide signal reception for satellite communications while rejecting terrestrial interference in C-Band. We offer premium performance and reliability in the smallest form factor possible. Backed by a 3 year warranty and over forty years of experience as the industry’s leading provider of high performance microwave components. 3200-sBPF Series.
|
KEY SPECIFICATIONS |
|
|
Band |
C-Band |
|
Input Frequency Band 1 |
C-Band: 3.40 - 4.20 GHz |
|
Input Frequency Band 2 |
C-Band: 3.90 - 4.20 GHz |
|
Lo Stability |
± 100 kHz max. |
|
Lo Type |
PLL |
|
Noise Figure |
37K typ. |
|
Output Frequency 1 |
L-Band: 950 - 1150 MHz |
|
Output Frequency 2 |
Band 1: 13V/ Band 2: 18V |
|
Product Family |
3000-SBPF Series |
|
RF SPECIFICATIONS |
|
|
Conversion Gain |
60 dB typ., 55 dB min., 70 dB max. |
|
Input VSWR |
2.2 : 1 |
|
Lo Frequency 1 |
5.15 GHz |
|
Lo Frequency 2 |
5.15 GHz |
|
Output VSWR |
2.5 : 1 |
|
ELECTRICAL SPECIFICATIONS |
|
|
Current Drain |
400 mA |
|
Input Voltage |
Band 1: 13V/ Band 2: 18V |
|
Power Requirements |
12 - 24 V |
|
INTERFACE SPECIFICATIONS |
|
|
RF Input Connector |
WR-229 waveguide grooved |
|
RF Output Connector |
N-50 Ohm |
|
ENVIRONMENTAL SPECIFICATIONS |
|
|
Temperature Operational |
-40 to +60°C |
|
Temperature Storage |
-50 to +70°C |
|
PHYSICAL SPECIFICATIONS |
|
|
Dimensions (LxWxH) |
159 x 98.5 x 70 mm |
