Norsat 3000 Series 3430F C-Band Single-Band LNB

(No reviews yet) Write a Review
SKU:
3430F
Weight:
0.50 KGS
Width:
7.00 (cm)
Height:
9.90 (cm)
Depth:
14.50 (cm)
  • Norsat 3000 Series 3430F C-Band Single-Band LNB
  • Norsat 3000 Series 3430F C-Band Single-Band LNB
$382.00
Frequently bought together:

Description

Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard C-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNBs. C-BAND PLL LNB 3.40-4.20GHZ; LO: +/-2KHZ; NT: 30K; F-CONN



KEY SPECIFICATIONS
Product Family 3000 Series
Band C-Band
LO Type PLL
# of onboard LOs Single-band
LO Stability +/- 2 kHz
Noise Figure 30 K
Input Frequency - Band 1 C-Band: 3.40 - 4.20 GHz
Output Frequency 1 L-Band: 950 - 1750 MHz

RF SPECIFICATIONS
LO Frequency 1 5.15 GHz
Phase Noise @ 1KHz offset -80 dBc/Hz
Phase Noise @ 10KHz offset -85 dBc/Hz
Phase Noise @ 100KHz offset -95 dBc/Hz
Conversion Gain 62 dB typ
Gain Variation over operating band ≤ 6.0 dB p-p
Input VSWR 2.2 : 1
Output VSWR 2.5 : 1
Output P1dB compression point 9 dBm

ELECTRICAL SPECIFICATIONS
Power Requirements 12 - 24 V
Current Drain 250 mA

INTERFACE SPECIFICATIONS
RF Input Connector CPR 229G waveguide grooved
RF Output Connector F-75 Ohm

M & C SPECIFICATIONS
LED Indicators None

ENVIRONMENTAL SPECIFICATIONS
Temperature - Operational -40 to +60°C
Temperature - Storage -40 to +80°C

PHYSICAL SPECIFICATIONS

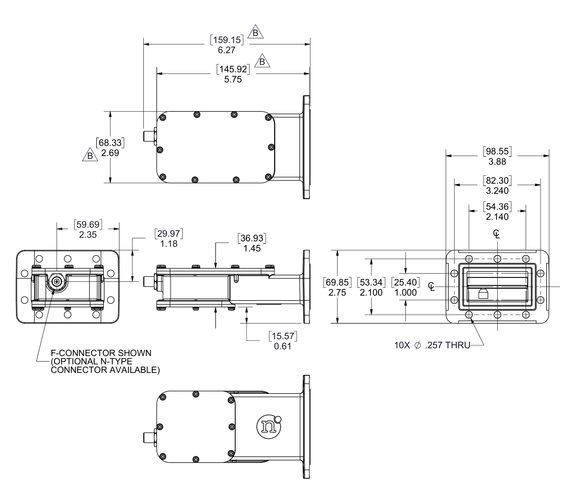

Dimensions (L x W x H) 145 x 70 x 99 mm
Weight 500 g
