Norsat International Inc.

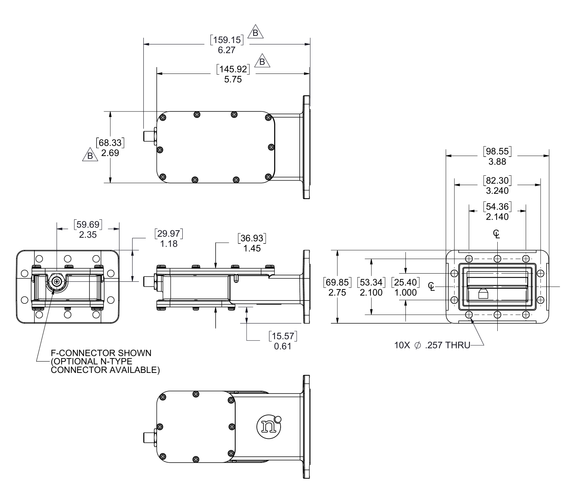

Norsat 3000 Series 3425N C-Band Single-Band LNB

No reviews yet
Product Code: 3425N
Availability: YES
Weight: 0.50 KGS
Width: 7.00 (cm)
Height: 9.90 (cm)
Depth: 14.50 (cm)
$438.00

Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard C-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNBs. C-BAND PLL LNB 3.40-4.20GHZ; LO: +/-2KHZ; NT: 25K; N-CONN



KEY SPECIFICATIONS
Product Family 3000 Series
Band C-Band
LO Type PLL
# of onboard LOs Single-band
LO Stability +/- 2 kHz
Noise Figure 25 K
Input Frequency - Band 1 C-Band: 3.40 - 4.20 GHz
Output Frequency 1 L-Band: 950 - 1750 MHz

RF SPECIFICATIONS
LO Frequency 1 5.15 GHz
Phase Noise @ 1KHz offset -80 dBc/Hz
Phase Noise @ 10KHz offset -85 dBc/Hz
Phase Noise @ 100KHz offset -95 dBc/Hz
Conversion Gain 62 dB typ
Gain Variation over operating band ≤ 6.0 dB p-p
Input VSWR 2.2 : 1
Output VSWR 2.5 : 1
Output P1dB compression point 9 dBm

ELECTRICAL SPECIFICATIONS
Power Requirements 12 - 24 V
Current Drain 250 mA

INTERFACE SPECIFICATIONS
RF Input Connector CPR 229G waveguide grooved
RF Output Connector N-50 Ohm

M & C SPECIFICATIONS
LED Indicators None

ENVIRONMENTAL SPECIFICATIONS
Temperature - Operational -40 to +60°C
Temperature - Storage -40 to +80°C

PHYSICAL SPECIFICATIONS
Dimensions (L x W x H) 145 x 70 x 99 mm
Weight 500 g
