Norsat 3000 Series 3030XN C-Band Single-Band LNB

No reviews yet

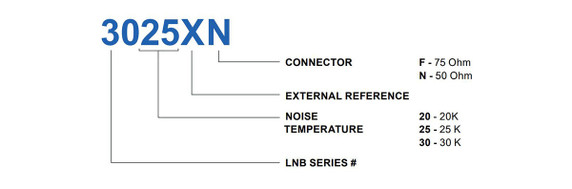

Product Code: 3030XN
Availability: YES
Weight: 0.58 KGS
Width: 10.00 (cm)
Height: 7.00 (cm)
Depth: 18.00 (cm)
$561.00

Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard C-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNBs. LNB,C-PLL,3.40-4.20GHZ,LOF:5.15GHZ,EXTREF,NT:30K,N-CONN



KEY SPECIFICATIONS
Product Family 3000 Series
Band C-Band
LO Type External
# of onboard LOs Single-band
LO Stability Phase Locked to External Reference at 10MHz
Noise Figure 30 K
Input Frequency - Band 1 C-Band: 3.40 - 4.20 GHz
Output Frequency 1 L-Band: 950 - 1750 MHz

RF SPECIFICATIONS
LO Frequency 1 5.15 GHz
Phase Noise @ 1KHz offset Depends on External Reference
Phase Noise @ 10KHz offset Depends on External Reference
Phase Noise @ 100KHz offset Depends on External Reference
Conversion Gain 65 dB
Gain Variation over operating band ≤ 4 dB p-p
Input VSWR 2.3 : 1
Output VSWR 2.3 : 1
Output P1dB compression point 3 dBm

ELECTRICAL SPECIFICATIONS
Power Requirements 12 - 24 V
Current Drain 250 mA

INTERFACE SPECIFICATIONS
RF Input Connector CPR 229G waveguide grooved
RF Output Connector N-50 Ohm

M & C SPECIFICATIONS
LED Indicators None

ENVIRONMENTAL SPECIFICATIONS
Temperature - Operational -40 to +60°C

PHYSICAL SPECIFICATIONS

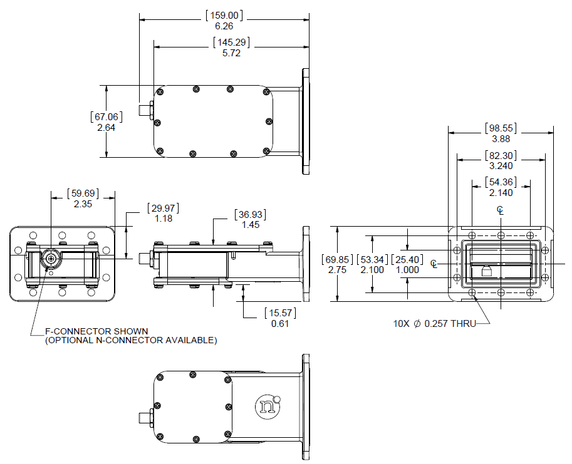

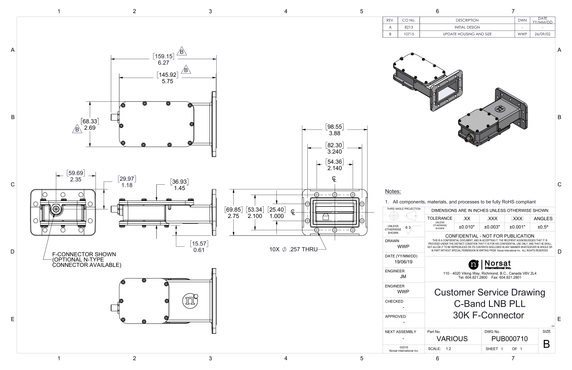

Dimensions (L x W x H) 180 x 100 x 70 mm
Weight 575g
