Norsat International Inc.

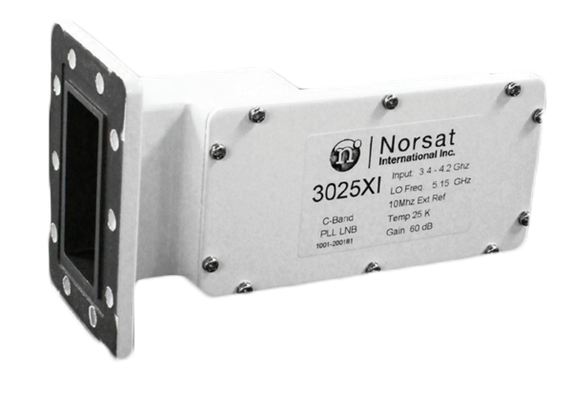

Norsat 3000 Series 3025XIN C-Band Single-Band LNB

No reviews yet
Product Code: 3025XIN
Availability: YES
Weight: 0.43 KGS
Width: 10.00 (cm)
Height: 7.00 (cm)
Depth: 18.00 (cm)
$539.00

Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard C-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNBs. LNB,C-PLL,4.50-4.80GHZ,LOF:5.76GHZ,EXTREF,NT:25K,N-CONN



KEY SPECIFICATIONS
Product Family 3000 Series
Band C-Band
LO Type External
# of onboard LOs Single-band
LO Stability Phase Locked to External Reference at 10MHz
Noise Figure 25 K
Input Frequency - Band 1 C-Band: 4.50 - 4.80 GHz
Output Frequency 1 L-Band: 960 - 1260 MHz

RF SPECIFICATIONS
LO Frequency 1 5.00 GHz
Phase Noise @ 1KHz offset -73 dBc/Hz
Phase Noise @ 10KHz offset -83 dBc/Hz
Phase Noise @ 100KHz offset -95 dBc/Hz
Conversion Gain 6 dBm
Input VSWR 2.2 : 1
Output VSWR 2.2 : 1
Output P1dB compression point 5 dBm

ELECTRICAL SPECIFICATIONS
Power Requirements 15 - 24 V
Current Drain 300 mA

INTERFACE SPECIFICATIONS
RF Input Connector CPR 229G waveguide grooved
RF Output Connector N-50 Ohm

M & C SPECIFICATIONS
LED Indicators None

ENVIRONMENTAL SPECIFICATIONS
Temperature - Operational -40 to +60°C
Humidity 0 - 95%

PHYSICAL SPECIFICATIONS

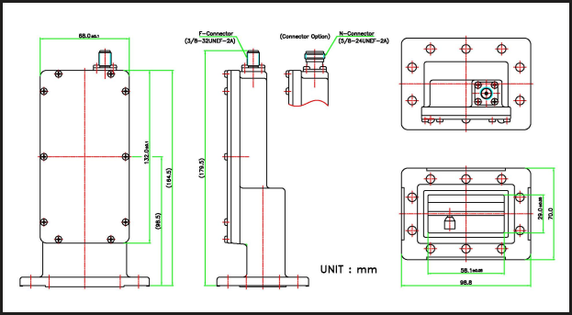

Dimensions (L x W x H) 180 x 100 x 70 mm
Weight 425 g
