Nisshinbo

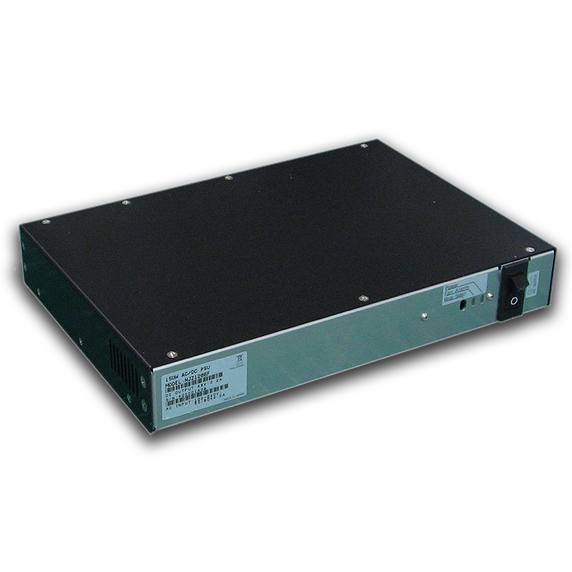

Nisshinbo NJZ1286F 150W PSU, Indoor type F-Connector
Product Code:
NJZ1286F
Condition:
New
Availability:
YES
Weight:
1.60 KGS
Width:
29.00
(cm)
Height:
4.40
(cm)
Depth:
20.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
About the PSU
This Power Supply Unit(PSU) is intended for the satellite communication data uplink application in C-band and Ku-band.
The features of the PSU are to provide the stable +48V DC power to operate both C-band 10W and Ku-band 8W BUCs, even if the inner power supply of the modem is not capable enough to operate these BUCs.
The PSU, which is having enough power supply of 150W as well as having the bias-tee which enable to pass 10MHz reference signal and IF signal from the modem, is operated by AC Power and enable to operate these BUCs.
In addition the PSU complies with UL CERTIFICATION and EC DIRECTIVE and this housing can fit the 1U rack mount with optional kit.
Key Specifications
| IF Connector | F-type (75 ohms), Female Connector |
Electrical Specifications
| Input AC Voltage Range | Rated Range: 100 to 240 VAC Absolute Maximum Rating: 90 to 264 VAC |
| Input AC Frequency Range | 50/60 Hz |
| Maximum Input AC Apparent Power | 200 VA |
| Output Voltage | +48 VDC |
| Output Voltage Accuracy | +/- 10 % |
| Output Current Range | 0 to 3.2 A |
| Maximum Output Power | 150 W |
| Standby Mode Power | 10 W max. Condition: No Connect BUC · No Output DC Power |
| Efficiency | 80 % typ. at 120 VAC, full load |
| Power Factor | 0.98 typ. at 120 VAC, full load |
| Output ON/OFF Control | a) Rocker Switch on the Front Panel b) Mode of DC Power Output Option 1: To keep supplying Option 2: Synchronization with input DC voltage on/off |
| IF Frequency Range | 950 to 1,700 MHz |
| IF Input/ Output Impedance | 75 ohms nom. |
| IF Input/ Output VSWR | 2 : 1 max. |
| IF Insertion Loss | 1.5 dB max. |
| Input DC Voltage Range | +24 / +48 VDC In case of option 2 in mode of DC power output, 50mA min. is needed from modem. |
| Protection | Internal Primary Current Fuse Short Protection |
| LED Indicator | DC Output (Power): GREEN: Supply a DC Power to BUC Fan Alarm: GREEN: Normal Condition RED: Abnormal Condition and Fan must be Replaced |
Mechanical Specifications
| AC Input Interface | IEC320-C14 Inlet |
| IF Input Interface Connector | F-type Female Connector, 75 ohms |
| IF Output Interface Connector | F-type Female Connector, 75 ohms |
| Cooling | Forced-air-cooled by Fan |
| Dimension & Housing | 290 (W) x 200 (D) x 44 (H) mm [11.42” (W) x 7.87” (D) x 1.73” (H) ] |
| Weight | 1.6 kg [3.5 lbs] |
Environmental Specifications
| Temperature Range (Ambient) | Operating: 0 to +50 °C Storage: -30 to +85 °C |
| Humidity | Operating: 30 to 90 %Rh non-condensing Storage: 10 to 95 %Rh |
| Vibration (Survival) | Non Operation 2 G [19.6 m/s2] Constant (10 to 55 Hz, Sweep Time: 1 min., 3 axis, 1 hour) |
| Shock (Survival) | 20 G [196.1 m/s2] (3 axis) |
| Regulations | EU Directive (CE Marking) EMC - 2014/30/EU Low Voltage - 2014/35/EU RoHS - 2011/65/EU + (EU)2015/863 UL Citification |
| Compliance Standard | EN 55022 EN 55024 EN 61000-3-2/3 EN 60950-1 / UL60950-1 EN 62311 |
| MTBF | 150,000 hours and more at +50 °C as Design Condition |
