Nisshinbo

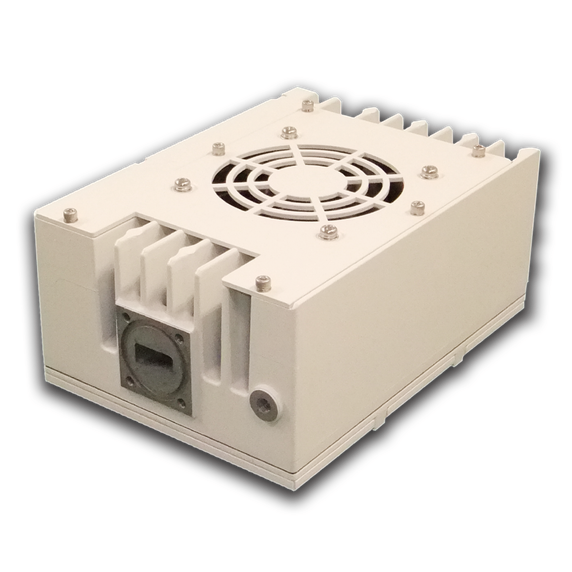

Nisshinbo NJT8318UNMA Universal Ku-band 8W mini-BUC 13.75 - 14.5 GHz
Product Code:
NJT8318UNMA
Condition:
New
Availability:
YES
Weight:
2.40 KGS
Width:
29.00
(cm)
Height:
4.40
(cm)
Depth:
20.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
About the BUC
The NJT8318UNMA is a Nisshinbo block up converter (BUC) operating in Ku-Band, with an output range of 13.75 - 14.50 GHz and an N-type IF interface. Full electrical, mechanical and environmental specifications are listed below.
Key Specifications
| Band | Ku-Band |
| Output Frequency | Ku-Band: 13.75 - 14.50 GHz |
| IF Connector | N-Connector |
| AC Power Operating Option | Enclosed AC/DC PSU for BUC |
| DC Input Connector | MS Connector |
Electrical Specifications
| Output Frequency Range | 13.75 to 14.5 GHz |
| Input Frequency Range | 950 to 1,700 MHz |
| Maximum IF Input Level (without damage) | +13 dBm max. |
| Conversion Type | Single, fixed L.O. |
| L.O. Frequency | 12.80 GHz |
| Frequency Sense | Positive |
| Output Power @ 1dB G.C.P. (P1dB) | +39 dBm min. over temperature |
| Linear Gain | 65 dB nom., 59 dB min. |
| Gain Variation over frequency @ fixed temperature | 5 dBp-p max. over 750 MHz 2 dBp-p max. over 54 MHz |
| Gain Stability over temperature | 4 dBp-p max. 2 dBp-p typ. |
| IM3 | -28 dBc typ., -24 dBc max. @ total power <= +39 dBm - 3 dB |
| ACPR | -28 dBc typ. @ Pout = +38 dBm |
| Requirement for External Reference | Frequency: 10 MHz (sine-wave) Input Power: -5 to +5 dBm @ Input port Phase Noise: -125 dBc/Hz max. @ 100 Hz -135 dBc/Hz max. @ 1 kHz -140 dBc/Hz max. @ 10 kHz |
| L.O. Phase Noise | -60 dBc/Hz max. @ 100 Hz -70 dBc/Hz max. @ 1 kHz -80 dBc/Hz max. @ 10 kHz -90 dBc/Hz max. @ 100 kHz -100 dBc/Hz max. @ 1MHz |
| Spurious @ P1dB Output | in band: -50 dBc max. @ RF Frequency in receive and: -70 dBm max. @ 10.95 to 12.75 GHz Out-of-band: -50 dBc max. |
| Receive Band Noise Density | Tx: 14.0 to 14.5 GHz -156 dBm/Hz max. @10.95 to 12.75 GHz Tx: 13.75 to 14.0 GHz -156 dBm/Hz max. @10.95 to 12.25 GHz -125 dBm/Hz max. @12.25 to 12.75 GHz |
| Noise Figure | 20 dB max. |
| Group Delay over any 54MHz | 2.5 nS p-p max. |
| Input Impedance | 50 ohms nom. |
| Input V.S.W.R. | 2 : 1 max. |
| Output V.S.W.R. | 2 : 1 max. |
| Output Load VSWR for Non Damage | 2 : 1 max. |
| DC Power Requirement | Voltage Range: +24 / +48 VDC (+18 to +60 VDC) Power Consumption: 65 W typ. @ No IF signal 80W typ., 90 W max. @ Pout = +39 dBm |
| Mute | Shut off the HPA in case of L.O. unlocked, no 10 MHz reference signal, or Over temperature. |
| LED Indicator | GREEN: L.O. locked RED: L.O. unlocked (or no 10 MHz reference signal) |
| Monitor and Control | <FSK Communication M&C> Interface: 650kHz FSK Signal on IF Connector Functions: Monitor: Tx Output Power / Temperature / Tx Status / Alarm (Over temperature / L.O. unlock) / Step Attenuator Control: Transmit On/Off / Step Attenuator Performance: Tx Output Power: Detector Range: 15 dB (up to P1dB) Reading Accuracy: +/- 1.0 dB Step Attenuator: Attenuator Range: 0 to 15.5 dB Attenuator Step: 0.5 dB *Details are mentioned on Appendix of “Specifications of Monitor & Control”. <RS-232C Interface M&C > Interface: RS-232C Interface on MS connector Functions: Monitor: Tx Output Power / Temperature / Tx Status / Alarm (Over temperature / L.O. unlock) / Step Attenuator Control: Transmit On/Off / Step Attenuator Performance: Tx Output Power: Detector Range: 15 dB (up to P1dB) Reading Accuracy: +/- 1.0 dB Step Attenuator: Attenuator Range: 0 to 15.5 dB Attenuator Step: 0.5 dB *Details are mentioned on Appendix of “Specifications of Monitor & Control”. until status of over temperature which turn °C, and the Mute and Alarm will function at status of |
Mechanical Specifications
| Input Interface | IF Connector: N-type or F-type, female IF / Ref. / FSK M&C Signal (/ DC) Input DC Input: IF Connector or MS Connector - MS Connector - Part No.: PT02E-14-12P (025) Mating connector: PT06E-14-12S (470) Assignment: * Pin G: RS-232C TxD and Pin H: RS-232C RxD are available for only RS-232C Interface M&C models. |
| Output Interface | Waveguide, WR-75 (with Groove) |
| Cooling | Forced-air-cooled |
| Dimension & Housing | 180(L) × 130(W) × 80(H) mm [7.09” (L) x 5.12” (W) x 3.15” (H)] without interface connectors and screws |
| Weight | 2.4 kg [5.3 lbs] via either MS Connector or IF Connector. If DC voltage is applied on both connectors, it may damage the unit or the unit may not operate properly. |
Environmental Specifications
| Temperature Range (ambient) | Operating: Operation Guarantee: -40 to +75 °C Performance Guarantee: -40 to +55 °C Storage: -40 to +75 °C |
| Humidity | 0 to 100 % |
| Altitude | 15,000 feet (4,572 m) |
| Vibration | 5 G [49.03 m/s2] (3 axis, 50 Hz to 2 kHz) 1 mm p-p (3 axis, 5 to 50 Hz) |
| Shock | 30 G [294.20 m/s2] (3 axis) |
| Waterproof / Dustproof (IP Code) | IP 67 |
| Regulations | EU Directive (CE Marking) EMC (2004/108/EC) |
AC Power Operating Option - Electrical Specifications
| Input AC Voltage Range | Rated Range: 100 to 240 VAC Absolute Maximum Rating: 90 to 264 VAC |
| Input AC Frequency Range | 50/60 Hz |
| Maximum Input AC Apparent Power | 200 VA |
| Output Voltage | +48 VDC |
| Output Voltage Accuracy | +/- 10 % |
| Output Current Range | 0 to 3.2 A |
| Maximum Output Power | 150 W |
| Standby Mode Power | 10 W max. Condition: No Connect BUC · Non DC Power Output |
| Efficiency | 80 % typ. at 120 VAC, full load |
| Power Factor | 0.98 typ. at 120 VAC, full load |
| Output ON/OFF Control | ・ Rocker Switch on the Front Panel ・ Mode of DC Power Output Option 1: To keep supplying Option 2: Synchronization with input DC voltage on/off |
| IF Frequency Range | 950 to 1,700 MHz |
| IF Input/ Output Impedance | 50 ohms nom. |
| IF Input/ Output VSWR | 2 : 1 max. |
| IF Insertion Loss | 1.5 dB max. |
| Input DC Voltage Range | +24 / +48 VDC In case of o ption 2 in mode of DC power output, 50mA min. is needed from modem. |
| Protection | ・ Internal Primary Current Fuse ・ Short Protection |
| LED Indicator | DC Output (Power): GREEN: Supply a DC Power to BUC Fan Alarm: GREEN: Normal Condition RED: Abnormal Condition and must be Replacement |
AC Power Operating Option - Mechanical Specifications
| AC Input Interface | IEC320-C14 inlet |
| IF Input Interface | N-type, female (50 ohms) |
| IF Output Interface | N-type, female (50 ohms) |
| Cooling | Forced Air by Fan |
| Dimension & Housing | (W) 290 x (D) 200 x (H) 44 mm [(W) 11.42” x (D) 7.87” x (H) 1.73”] |
| Weight | 1.6 kg [3.5 lbs] |
AC Power Operating Option - Environmental Specifications
| Temperature Range (ambient) | Operating: 0 to +50 °C Storage: -30 to +85 °C |
| Humidity | Operating: 30 to 90 %Rh non-condensing Storage: 10 to 95 %Rh |
| Vibration | Non Operation 19.6 m/s2 Constant (10 to 55 Hz,Sweep time:1min., 3 axis,1hr) |
| Shock | 20 G [196.1 m/s2] (3 axis) |
| Compliance Standard | EN55022 EN55024 EN61000-3-2/3 EN60950-1 / UL60950-1 EN62311 |
| Regulations | EU Directive (CE Marking) EMC (2004/108/EC) Low Voltage (2006/95/EC) UL Citification |
