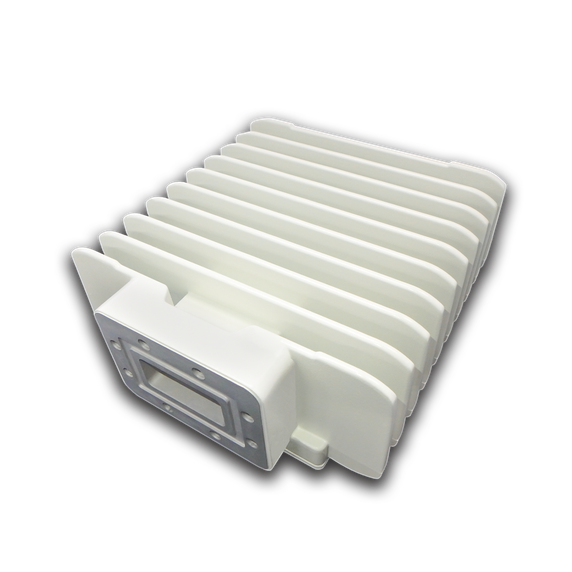

Nisshinbo NJT8103F 3W C-band mini-BUC 5.85 - 6.425 GHz
Product Code:
NJT8103F
Condition:
New
Availability:
YES
Weight:
1.37 KGS
Width:
14.90
(cm)
Height:
5.70
(cm)
Depth:
13.40
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
About the BUC
The NJT8103F is a Nisshinbo block up converter (BUC) operating in C-Band, with an output range of 5.85 - 6.425 GHz, 3W of rated output power and an F-type IF interface. Full electrical, mechanical and environmental specifications are listed below.
Key Specifications
| Band | C-Band |
| Output Frequency | C-Band: 5.85 - 6.425 GHz |
| Output Power | 3W |
| IF Connector | F-Connector |
| Output Power @ 1dB G.C.P. | +34.5 dBm (3W) |
Electrical Specifications
| Output RF Frequency Range | 5.85 to 6.425 GHz |
| Input IF Frequency Range | 950 to 1,525 MHz |
| Maximum IF Input Level (without damage) | +13 dBm max. |
| Conversion Type | Single, fixed L.O. |
| L.O. Frequency | 4.9 GHz |
| Frequency Sense | Positive |
| Output Power @ 1dB G.C.P. (P1dB) | +34.5 dBm min. over temperature |
| Linear Gain | 59 dB nom., 53 dB min. |
| Gain Variation over frequency @ fixed temperature | 5 dBp-p max. over 575 MHz 2 dBp-p max. over 36 MHz |
| Gain Stability over temperature | 5 dBp-p max. 2 dBp-p typ. |
| ACPR / Regrowth Output Power: +34.5 dBm Modulation: QPSK Data Type: PN23 | -26 dBc typ. at 1 MHz offset from modulation center frequency Symbol Rate: 1 Msps FIR filter: RNYQ, α=0.3 |
| Requirement for External Reference | Frequency: 10 MHz (sine-wave) Input Power: -5 to +5 dBm @ Input port Phase Noise: -120 dBc/Hz max. @ 100 Hz -130 dBc/Hz max. @ 1 kHz -140 dBc/Hz max. @ 10 kHz |
| L.O. Phase Noise | -60 dBc/Hz max. @ 100 Hz -70 dBc/Hz max. @ 1 kHz -80 dBc/Hz max. @ 10 kHz -90 dBc/Hz max. @ 100 kHz -100 dBc/Hz max. @ 1MHz |
| Spurious @ Pout = +34.5 dBm | In-band: -50 dBc max. @ 5.85 to 6.425 GHz Receive-band: -70 dBm max. @ 3.625 to 4.2 GHz Out-of-band: -50 dBc max. |
| Receive Band Noise Density | -87 dBm/4kHz max. @ 3.625 to 4.2 GHz |
| Noise Figure | 20 dB max. |
| Input Impedance | 75 ohms nom. |
| Input V.S.W.R. | 2 : 1 max. |
| Output V.S.W.R. | 2 : 1 max. |
| Output Load V.S.W.R. | Recommendation: 1.3 : 1 max. Non Damage: Infinite : 1 |
| DC Power Requirement | Voltage Range: +24 VDC (+12 to +30 VDC) Power Consumption: 21 W typ., 25 W max. @ Pout = +34.5 dBm 18 W typ. @ No IF signal 2 W max. @ 10 MHz reference off (Mute on) |
| Mute | Shut off the HPA in case of L.O. unlocked or no 10 MHz reference signal. |
Mechanical Specifications
| Input Interface | IF / Ref. / DC Power Input: Coaxial Connector, F-type Female - 75 ohms |
| Output Interface | Waveguide, CPR-137G (with Groove) |
| Dimension & Housing | 135.4 (L) × 85 (W) × 56 (H) mm [5.33” (L) x 3.35” (W) x 2.20” (H)] |
| Weight | 800 g [1.8 lbs] |
| Cooling | Convection Air Cooling |
Environmental Specifications
| Temperature Range (Ambient) | Operating: -40 to +60 °C Storage: -40 to +75 °C |
| Humidity | 0 to 100 % RH |
| Altitude | 15,000 feet (4,572 m) |
| Vibration (Survival) | 5 G [49.03 m/s2] (3 axis, 50 Hz to 2 kHz) 1 mm p-p (3 axis, 5 to 50 Hz) |
| Shock (Survival) | 30 G [294.20 m/s2] (3 axis) |
| Waterproof / Dustproof (IP Code Rating) | IP 67 |
| Regulations | EU Directive (CE Marking) RE - 2014/53/EU EMC - 2014/30/EU RoHS - 2011/65/EU + (EU)2015/863 Safety: EN62368-1, EN60950-22 |
| MTBF (by Method of Parts Count Reliability as Design Condition Prediction) | 150,000 hours and more at +60 °C |
