Nisshinbo

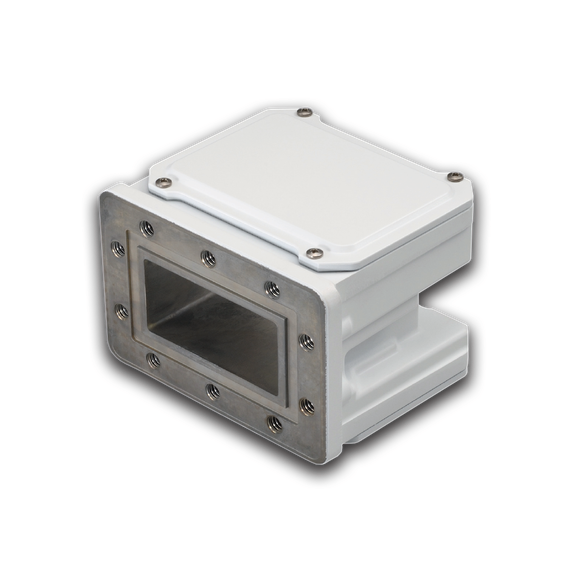

Nisshinbo NJS8451 C-band LNA 4.5 - 4.8 GHz
Product Code:
NJS8451
Condition:
New
Availability:
YES
Weight:
0.80 KGS
Width:
8.08
(cm)
Height:
7.60
(cm)
Depth:
9.96
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
About the LNA
This LNA is intended for the satellite communication data downlink application in C-band. It is combined a 3-stage HEMT amplifier. The LNA receives an RF signal (C-band: 3.4 to 4.2 GHz, or 4.5 to 4.8 GHz) as input, amplifies and outputs the RF signal. It is operated by +24 V DC power (range: +12 to +28 V) input. The LNA comes in a single, weatherized housing rated for outdoor use, and has a CPR-229G waveguide flange as RF input and an N-type female connector as RF output.
Key Specifications
| Band | C-Band |
| Input Frequency | C-Band: 4.50 - 4.80 GHz |
| Noise Figure | 15 K |
| IF Connector | N-Connector |
Electrical Specifications
| Absolute Maximum Rating | RF Input Power: -10 dBm (@ CW), +10 dBm (@ Pulse) Supply Voltage: +30 V DC |
| Input RF Frequency Range | 4.5 to 4.8 GHz |
| Input RF Level | -135 to -65 dBm |
| Noise Temperature @ +25 °C | 15 K typ., 30 K max. |
| Conversion Gain @ +25 °C | 55 dB min., 62 dB max. |
| Conversion Gain Ripple @ +25 °C | 2 dBp-p max. at any 50 MHz segments. |
| Conversion Gain Flatness over Frequency @ +25 °C | 3 dBp-p max. over 300 MHz BW |
| Conversion Gain Variation over Temperature | 5 dB max. |
| Output Power @ 1dB G.C.P. (P1dB) | +7 dBm min. |
| Output Intercept Point | +19 dBm min. |
| Output V.S.W.R. | 2 : 1 typ., 3 : 1 max. |
| Power Requirement | Input Port: RF Output Interface Connector (Combine DC Power with Output RF Signal) Input Voltage: +12 to +28 VDC Current Drain: 125 mA typ., 160 mA max. |
Mechanical Specifications
| Input Waveguide Flange | Waveguide, CPR-229G (with Groove) |
| RF Interface Connector | Coaxial Connector, N-type Female - 50 ohms |
| Dimension & Housing | 80.8 (L) x 99.6 (W) x 76 (H) mm [3.18” (L) x 3.92” (W) x 2.99” (H) ] |
| Weight | 800 g [1.76 lbs] |
Environmental Specifications
| Temperature Range (Ambient) | Operating: -40 to +60 °C Storage: -40 to +80 °C |
| Humidity | 0 to 100 % RH |
| Altitude | 15,000 feet (4,572 m) |
| Vibration (Survival) | 5 G [49.03 m/s2] (3 axis, 50 Hz) |
| Shock (Survival) | 15 G [147.1 m/s2] (3 axis) |
| Waterproof / Dustproof (IP Code Rating) | IP 67 |
| Regulations | EU Directive (CE Marking) EMC - 2014/30/EU RoHS - 2011/65/EU + (EU)2015/863 Safety: EN60950-1 |
| MTBF | 150,000 hours and more at +60 °C as Design Condition |
5 customers are viewing this product
Details
About the LNA
This LNA is intended for the satellite communication data downlink application in C-band. It is combined a 3-stage HEMT amplifier. The LNA receives an RF signal (C-band: 3.4 to 4.2 GHz, or 4.5 to 4.8 GHz) as input, amplifies and outputs the RF signal. It is operated by +24 V DC power (range: +12 to +28 V) input. The LNA comes in a single, weatherized housing rated for outdoor use, and has a CPR-229G waveguide flange as RF input and an N-type female connector as RF output.
Key Specifications
| Band | C-Band |
| Input Frequency | C-Band: 4.50 - 4.80 GHz |
| Noise Figure | 15 K |
| IF Connector | N-Connector |
Electrical Specifications
| Absolute Maximum Rating | RF Input Power: -10 dBm (@ CW), +10 dBm (@ Pulse) Supply Voltage: +30 V DC |
| Input RF Frequency Range | 4.5 to 4.8 GHz |
| Input RF Level | -135 to -65 dBm |
| Noise Temperature @ +25 °C | 15 K typ., 30 K max. |
| Conversion Gain @ +25 °C | 55 dB min., 62 dB max. |
| Conversion Gain Ripple @ +25 °C | 2 dBp-p max. at any 50 MHz segments. |
| Conversion Gain Flatness over Frequency @ +25 °C | 3 dBp-p max. over 300 MHz BW |
| Conversion Gain Variation over Temperature | 5 dB max. |
| Output Power @ 1dB G.C.P. (P1dB) | +7 dBm min. |
| Output Intercept Point | +19 dBm min. |
| Output V.S.W.R. | 2 : 1 typ., 3 : 1 max. |
| Power Requirement | Input Port: RF Output Interface Connector (Combine DC Power with Output RF Signal) Input Voltage: +12 to +28 VDC Current Drain: 125 mA typ., 160 mA max. |
Mechanical Specifications
| Input Waveguide Flange | Waveguide, CPR-229G (with Groove) |
| RF Interface Connector | Coaxial Connector, N-type Female - 50 ohms |
| Dimension & Housing | 80.8 (L) x 99.6 (W) x 76 (H) mm [3.18” (L) x 3.92” (W) x 2.99” (H) ] |
| Weight | 800 g [1.76 lbs] |
Environmental Specifications
| Temperature Range (Ambient) | Operating: -40 to +60 °C Storage: -40 to +80 °C |
| Humidity | 0 to 100 % RH |
| Altitude | 15,000 feet (4,572 m) |
| Vibration (Survival) | 5 G [49.03 m/s2] (3 axis, 50 Hz) |
| Shock (Survival) | 15 G [147.1 m/s2] (3 axis) |
| Waterproof / Dustproof (IP Code Rating) | IP 67 |
| Regulations | EU Directive (CE Marking) EMC - 2014/30/EU RoHS - 2011/65/EU + (EU)2015/863 Safety: EN60950-1 |
| MTBF | 150,000 hours and more at +60 °C as Design Condition |
Download
| Download Name | |
| NJS8452 LNA Datasheet | |
