Nextivity

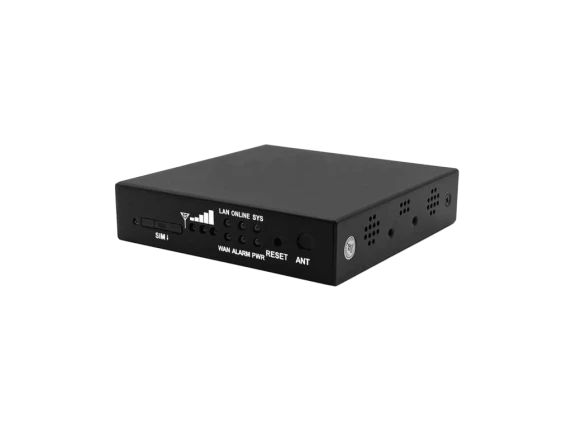

Nextivity LTEM-EU LTE Modem
Product Code:
LTEM-EU
Condition:
New
Weight:
0.71 KGS
Width:
28.20
(cm)
Height:
6.90
(cm)
Depth:
24.70
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The Nextivity LTE Modem brings CEL-FI systems online for WAVE Portal remote management capabilities. Equipped with a CAT 4 LTE modem, the device offers highspeed data transfer rates for seamless system monitoring as well as performing software updates for CEL-FI systems installed in locations where local ISP LAN connectivity is not available. The LTE Modem is compatible with CEL-FI GO and CEL-FI QUATRA products and connects to the LAN port on a CEL-FI system via category cable.
Features and benefits include:
- High-speed LTE CAT 4 modem for WAVE management of CEL-FI devices
- WAN port for local ISP connection for redundancy with auto switchover
- Single product for EMEA and APAC operator networks with respective operator SIM
- Connect up to two CEL-FI devices with category cables by reconfiguring WAN port
- Includes SIM-card-size adapter for flexibility to use with nano, micro, and full size SIM
| Specifications | |
| Frequency Bands | 1/3/7/8/20/28L/38/40/41 |
| Networks | 2G/3G/4G |
| Network Standards | GSM/WCDMA/LTE |
| Duplex Modes | FDD & TDD |
| Impedance (Ω) | 50 |
| Antenna ESD Protection (kV) | 15 |
| Ethernet ESD Protection (kV) | 1.5 |
| Ethernet | 100BASE-TX Fast Ethernet |
| RMS Ethernet Isolation (kV) | 1.5 |
| Network Protocols | PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, BGP, DNS, DDNS, HTTP, ARP, QoS, SNTP, Telnet, SSH |
| Redundancy | WAN switchover (optional) |
| Interface | |
| Antenna/Donor RF Connector | SMA (f) |
| SIM Slot | 1FF Full Size SIM Card Tray (Includes adapter for 3FF Micro & 4FF Nano SIM) |
| LAN | 1x RJ 45 |
| WAN | 1x RJ 45 |
| DC Input | 5.5 x 2.5 mm (f) Barrel |
| Status LED (PWR/LAN/WAN/ONLINE/SYS/ALARM) | 1x Green |
| Status LED (Signal Strength) | 3x Green |
| Factory Reset | Reset button |
| Compliance | |
| 3GPP | Release 11 LTE |
| CE | Directive 2014/53/EU Compliant |
| RoHS | Directive 2015/863/EU Compliant |
| REACH | Regulation EC 1907/2006 Compliant |
| Australia/New Zealand | RCM Approved |
| Power Supply | |
| Power Consumption (W max.) | 18 |
| AC Adapter Plug* | Type C (EU) |
| AC Adapter Cable | 22 AWG |
| AC Adapter Cable Length (ft (m)) | 3.3 (1) |
| Modem Input Voltage (VDC) | 5-35 |
| * Alternate AC adapters available on special request | |
| Environmental | |
| Operating Temperature (°F (°C)) | 32 to 104 (0 to 40) |
| Storage Temperature (°F (°C)) | -31 to 158 (-35 to 70) |
| Heat Dissipation | Passive Convection |
| Surface Temperature (°F (°C) max. at ambient) | 111.2 (44) |
| Non-condensing Humidity (%) | 0 to 95 |
| Ingress Protection Rating | IP20 Indoor Only |
| Mechanical & Packaging | |
| Box Contents | Modem Mag-Mount Antenna Category Cable AC Adapter Mounting Hardware SIM Card Adapter |
| Main Unit Dimensions (in (mm)) | 4.61 x 3.94 x 0.91(117 x 100 x 23) |
| Main Unit Weight (lbs (kg)) | 0.71 (0.32) |
| Shipping Dimensions (in (mm)) | 11.10 x 9.72 x 2.72 (282 x 247 x 69) |
| Shipping Weight (lbs (kg)) | 1.50 (0.68) |
| Ordering Information | |
| M/N# | LTEM-EU |
| Regions | EMEA & APAC |
5 customers are viewing this product
Details
The Nextivity LTE Modem brings CEL-FI systems online for WAVE Portal remote management capabilities. Equipped with a CAT 4 LTE modem, the device offers highspeed data transfer rates for seamless system monitoring as well as performing software updates for CEL-FI systems installed in locations where local ISP LAN connectivity is not available. The LTE Modem is compatible with CEL-FI GO and CEL-FI QUATRA products and connects to the LAN port on a CEL-FI system via category cable.
Features and benefits include:
- High-speed LTE CAT 4 modem for WAVE management of CEL-FI devices
- WAN port for local ISP connection for redundancy with auto switchover
- Single product for EMEA and APAC operator networks with respective operator SIM
- Connect up to two CEL-FI devices with category cables by reconfiguring WAN port
- Includes SIM-card-size adapter for flexibility to use with nano, micro, and full size SIM
| Specifications | |
| Frequency Bands | 1/3/7/8/20/28L/38/40/41 |
| Networks | 2G/3G/4G |
| Network Standards | GSM/WCDMA/LTE |
| Duplex Modes | FDD & TDD |
| Impedance (Ω) | 50 |
| Antenna ESD Protection (kV) | 15 |
| Ethernet ESD Protection (kV) | 1.5 |
| Ethernet | 100BASE-TX Fast Ethernet |
| RMS Ethernet Isolation (kV) | 1.5 |
| Network Protocols | PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, BGP, DNS, DDNS, HTTP, ARP, QoS, SNTP, Telnet, SSH |
| Redundancy | WAN switchover (optional) |
| Interface | |
| Antenna/Donor RF Connector | SMA (f) |
| SIM Slot | 1FF Full Size SIM Card Tray (Includes adapter for 3FF Micro & 4FF Nano SIM) |
| LAN | 1x RJ 45 |
| WAN | 1x RJ 45 |
| DC Input | 5.5 x 2.5 mm (f) Barrel |
| Status LED (PWR/LAN/WAN/ONLINE/SYS/ALARM) | 1x Green |
| Status LED (Signal Strength) | 3x Green |
| Factory Reset | Reset button |
| Compliance | |
| 3GPP | Release 11 LTE |
| CE | Directive 2014/53/EU Compliant |
| RoHS | Directive 2015/863/EU Compliant |
| REACH | Regulation EC 1907/2006 Compliant |
| Australia/New Zealand | RCM Approved |
| Power Supply | |
| Power Consumption (W max.) | 18 |
| AC Adapter Plug* | Type C (EU) |
| AC Adapter Cable | 22 AWG |
| AC Adapter Cable Length (ft (m)) | 3.3 (1) |
| Modem Input Voltage (VDC) | 5-35 |
| * Alternate AC adapters available on special request | |
| Environmental | |
| Operating Temperature (°F (°C)) | 32 to 104 (0 to 40) |
| Storage Temperature (°F (°C)) | -31 to 158 (-35 to 70) |
| Heat Dissipation | Passive Convection |
| Surface Temperature (°F (°C) max. at ambient) | 111.2 (44) |
| Non-condensing Humidity (%) | 0 to 95 |
| Ingress Protection Rating | IP20 Indoor Only |
| Mechanical & Packaging | |
| Box Contents | Modem Mag-Mount Antenna Category Cable AC Adapter Mounting Hardware SIM Card Adapter |
| Main Unit Dimensions (in (mm)) | 4.61 x 3.94 x 0.91(117 x 100 x 23) |
| Main Unit Weight (lbs (kg)) | 0.71 (0.32) |
| Shipping Dimensions (in (mm)) | 11.10 x 9.72 x 2.72 (282 x 247 x 69) |
| Shipping Weight (lbs (kg)) | 1.50 (0.68) |
| Ordering Information | |
| M/N# | LTEM-EU |
| Regions | EMEA & APAC |
