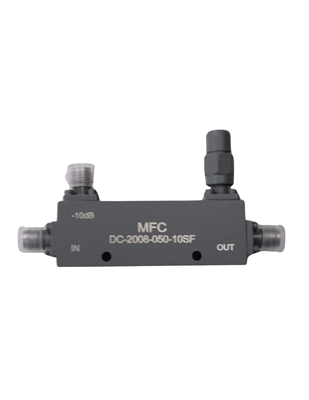

Microwave Filter Company DC-2008-050-10SF Directional Coupler, 2-8 GHz, 10dB, SMA Female
Product Code:
DC-2008-050-10SF
Condition:
New
Weight:
1.00 KGS
Width:
13.00
(cm)
Height:
1.00
(cm)
Depth:
0.80
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
DC-2008-050-10SF is a directional coupler that covers 2 to 8 GHz with broadband flat coupling response, high directivity, and excellent return loss performance. Coupling flatness ±0.5dB typical. Return loss 23dB typical. Directivity 22dB typical. Mainline loss 0.72dB typical. The 2-8GHz makes it ideal for Wi-Fi and extended Wi-Fi test setups, as well as military radio S band and C band operations all in one device. The small enclosure measures 2.00 x 0.69 x 0.38 inches and includes two mounting holes within the envelope. Connectors are stainless steel SMA female. The device is RoHS compliant.
| Product Specifications | |
| Coupler Type | Single Coupler |
| Frequency Low MHz | 2000 |
| Frequency High MHz | 8000 |
| Coupling dB | 10 |
| Mainline Loss dB Typ | 0.72 |
| Directivity dB Typ | 22 |
| Input Power W Max | 50 |
5 customers are viewing this product
Details
DC-2008-050-10SF is a directional coupler that covers 2 to 8 GHz with broadband flat coupling response, high directivity, and excellent return loss performance. Coupling flatness ±0.5dB typical. Return loss 23dB typical. Directivity 22dB typical. Mainline loss 0.72dB typical. The 2-8GHz makes it ideal for Wi-Fi and extended Wi-Fi test setups, as well as military radio S band and C band operations all in one device. The small enclosure measures 2.00 x 0.69 x 0.38 inches and includes two mounting holes within the envelope. Connectors are stainless steel SMA female. The device is RoHS compliant.
| Product Specifications | |
| Coupler Type | Single Coupler |
| Frequency Low MHz | 2000 |
| Frequency High MHz | 8000 |
| Coupling dB | 10 |
| Mainline Loss dB Typ | 0.72 |
| Directivity dB Typ | 22 |
| Input Power W Max | 50 |
Download
| Download Name | |
| Microwave Filter Company DC-2008-050-10SF Datasheet | |
