Microwave Filter Company

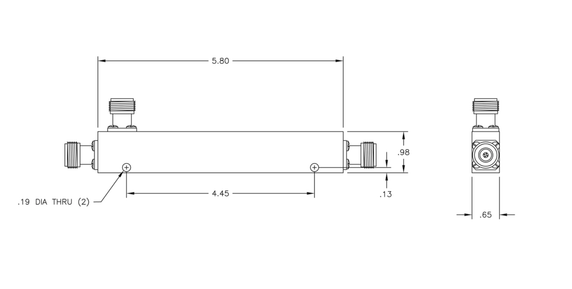

Microwave Filter Company DC-1318-050-10N 10 dB Directional Coupler
Product Code:
DC-1318-050-10N
Condition:
New
Weight:
1.00 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The directional coupler provides a simple means of monitoring or sampling RF energy. The coupling value (i.e. 20 dB) is the amount of power diverted to the coupled output from the main line. The “main line” power is reduced by a like amount (i.e. 0.044 dB for a 20 dB coupler). The directivity indicates the degree to which the coupled port is isolated from the main line load. The insertion loss specified includes the losses due to coupling. The internal termination determines the power handling capability of the coupler particularly with mismatched “main line” loads.
| Product Specifications | |
| Coupling | 10 dB, ± 1.0 dB |
| Isolation | 20 dB |
| Insertion Loss (dB) | 0.8 dB |
| Connector | N female |
| Freq Range (MHz) | 130-180 |
| PIM | -120 dBc Min @ 2 x 43 dBm |
| VSWR (Max) | 1.30:1 |
| Power | 50 Watts |
| Impedance | 50 Ohms |
| Operating Temp. Range | -40°C to +60°C |
| Relative Humidity | 5% - 95% |
5 customers are viewing this product
Details
The directional coupler provides a simple means of monitoring or sampling RF energy. The coupling value (i.e. 20 dB) is the amount of power diverted to the coupled output from the main line. The “main line” power is reduced by a like amount (i.e. 0.044 dB for a 20 dB coupler). The directivity indicates the degree to which the coupled port is isolated from the main line load. The insertion loss specified includes the losses due to coupling. The internal termination determines the power handling capability of the coupler particularly with mismatched “main line” loads.
| Product Specifications | |
| Coupling | 10 dB, ± 1.0 dB |
| Isolation | 20 dB |
| Insertion Loss (dB) | 0.8 dB |
| Connector | N female |
| Freq Range (MHz) | 130-180 |
| PIM | -120 dBc Min @ 2 x 43 dBm |
| VSWR (Max) | 1.30:1 |
| Power | 50 Watts |
| Impedance | 50 Ohms |
| Operating Temp. Range | -40°C to +60°C |
| Relative Humidity | 5% - 95% |
Download
| Download Name | |
| Microwave Filter Company DC-1318-050-10N Datasheet | |
