Microwave Filter Company

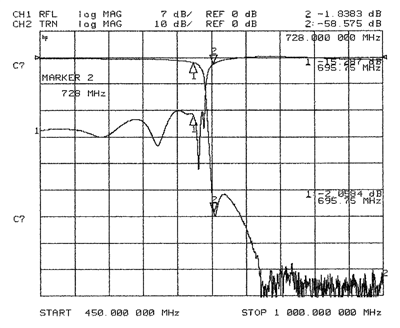

Microwave Filter Company 3322-695/728(50) DTV-UHF Lowpass Filters
Product Code:
3322-695/728(50)
Condition:
New
Weight:
1.00 KGS
Width:
10.20
(cm)
Height:
2.79
(cm)
Depth:
3.80
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
These lowpass filters prevent DTV-UHF receiver overload from undesired adjacent (700 MHz) band transmissions.
Features
- Fully suppresses 700 MHz (downlink) bands 12, 13, 14 and 17
- Allows for clean reception of DTV-UHF channels 14-50 and all DTV-VHF channels 2-13
- Also suppresses GSM 850 & GSM 900 bands
| Product Specifications | |
| Passband | 5 - 695 MHz |
| Passband Loss | 3 dB Typ @ 695 MHz, 1 dB Typ in Remainder of Passband |
| Stopbands | 728 - 1000 MHz |
| Stopband Attenuation | 50 dB Min |
| Impedance | 75 ohms |
| Connectors | F-Female |
| Size | 4" x 1.5" x 1.1" Approx |
5 customers are viewing this product
Details
These lowpass filters prevent DTV-UHF receiver overload from undesired adjacent (700 MHz) band transmissions.
Features
- Fully suppresses 700 MHz (downlink) bands 12, 13, 14 and 17
- Allows for clean reception of DTV-UHF channels 14-50 and all DTV-VHF channels 2-13
- Also suppresses GSM 850 & GSM 900 bands
| Product Specifications | |
| Passband | 5 - 695 MHz |
| Passband Loss | 3 dB Typ @ 695 MHz, 1 dB Typ in Remainder of Passband |
| Stopbands | 728 - 1000 MHz |
| Stopband Attenuation | 50 dB Min |
| Impedance | 75 ohms |
| Connectors | F-Female |
| Size | 4" x 1.5" x 1.1" Approx |
Download
| Download Name | |
| Microwave Filter Company 3322-695/728(50) Datasheet | |
