Microwave Filter Company

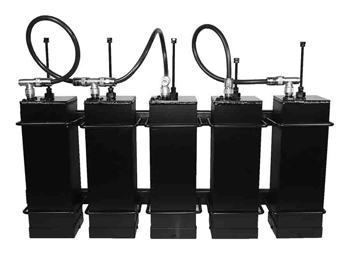

Microwave Filter Company 19494 || 19507 || 19512 High “Q” Cavity Combiners
Product Code:
19494 || 19507 || 19512
Condition:
New
Weight:
1.00 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
High "Q" Cavity Combiners
Models 19494, 19507 and 19512 Series
Available for transmit or receive applications combining two or more frequencies between 88-950 MHz These combiners utilize high “Q” cavity filter components that are electrically phased together via “tee-ing” networks. Choose from our 4”, 7” and 12” cavity arrays – based on your power and/or insertion loss requirements Each filter section uses invar tuning rods to ensure temperature stable performance.
| Specifications | |
| Bandwidth | Up to 3% (BW/Fo) per frequency |
| Return Loss | 14 dB Min |
| Power Rating | Up to 400 Watts* per frequency (19494 series) Up to 900 Watts* per frequency (19507 series) Up to 1200 Watts* per frequency (19512 series) |
| Temperature Stability | 0.0005 MHz / °C |
| Impedance | 50 ohms |
| Available Connectors | N, 7/16 DIN, 7/8 EIA and 1-5/8 EIA |
| * Dependent upon passband insertion loss. | |
5 customers are viewing this product
Details
High "Q" Cavity Combiners
Models 19494, 19507 and 19512 Series
Available for transmit or receive applications combining two or more frequencies between 88-950 MHz These combiners utilize high “Q” cavity filter components that are electrically phased together via “tee-ing” networks. Choose from our 4”, 7” and 12” cavity arrays – based on your power and/or insertion loss requirements Each filter section uses invar tuning rods to ensure temperature stable performance.
| Specifications | |
| Bandwidth | Up to 3% (BW/Fo) per frequency |
| Return Loss | 14 dB Min |
| Power Rating | Up to 400 Watts* per frequency (19494 series) Up to 900 Watts* per frequency (19507 series) Up to 1200 Watts* per frequency (19512 series) |
| Temperature Stability | 0.0005 MHz / °C |
| Impedance | 50 ohms |
| Available Connectors | N, 7/16 DIN, 7/8 EIA and 1-5/8 EIA |
| * Dependent upon passband insertion loss. | |
