Microwave Filter Company

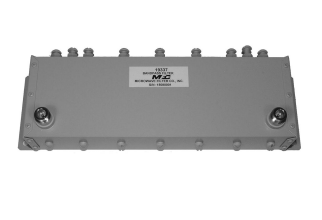

Microwave Filter Company 19337 700 MHz Band Bandpass Filter
Product Code:
19337
Condition:
New
Weight:
1.00 KGS
Width:
31.90
(cm)
Height:
9.00
(cm)
Depth:
7.40
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
This filter isolates LTE 700 MHz downlink bands 12, 13, 17 and 29 from undesired operations above and below those bands.
| Product Specifications | |
| Passband(MHz) | 715 – 757 |
| Passband I/L | 1 dB Max |
| Passband R/L | 14 dB Min |
| Stopband(s) (MHz) | 685 & 778 |
| Stopband Attenuation | 55 dB Approx |
| Connectors | N-female |
5 customers are viewing this product
Details
This filter isolates LTE 700 MHz downlink bands 12, 13, 17 and 29 from undesired operations above and below those bands.
| Product Specifications | |
| Passband(MHz) | 715 – 757 |
| Passband I/L | 1 dB Max |
| Passband R/L | 14 dB Min |
| Stopband(s) (MHz) | 685 & 778 |
| Stopband Attenuation | 55 dB Approx |
| Connectors | N-female |
