Microwave Filter Company

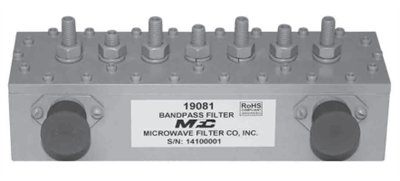

Microwave Filter Company 19081 GSM 1800 Partial Band Receive Filter
Product Code:
19081
Condition:
New
Weight:
1.00 KGS
Width:
6.50
(cm)
Height:
1.54
(cm)
Depth:
1.95
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
This filter isolates a portion of the GSM 1800 band from a portion of the GSM 1800 transmit band.
| Product Specifications | |
| Passband Receive | 1735-1755 MHz |
| Passband Insertion Loss | 1.0 dB Approx |
| Rejection | 60 dB Min from 1830-1850 MHz |
| Connectors | N-Female |
| Passband VSWR | 1.35:1 |
| Impedance | 50 ohms |
5 customers are viewing this product
Details
This filter isolates a portion of the GSM 1800 band from a portion of the GSM 1800 transmit band.
| Product Specifications | |
| Passband Receive | 1735-1755 MHz |
| Passband Insertion Loss | 1.0 dB Approx |
| Rejection | 60 dB Min from 1830-1850 MHz |
| Connectors | N-Female |
| Passband VSWR | 1.35:1 |
| Impedance | 50 ohms |
