Microwave Filter Company

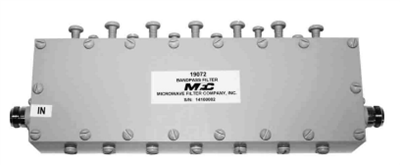

Microwave Filter Company 19072 EGSM 900 Full Band (Transmit & Receive) Bandpass Filter
Product Code:
19072
Condition:
New
Weight:
1.00 KGS
Width:
23.50
(cm)
Height:
7.60
(cm)
Depth:
4.30
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
This filter isolates the EGSM 900 transmit and receive bands from potential interference from other bands operating above and below these bands.
| Product Specifications | |
| Receive Band | 880-960 MHz |
| Passband Insertion Loss | 1.0 dB Max |
| Maximum Transmit Power Handling | 20 Watts (CW) |
| Operating Temperature | 0°C to +50°C |
| Connectors | N Female |
| Impedance | 50 ohms |
| Dimensions | 235mm x 43mm x 76mm |
| Passband VSWR | 1.4:1 |
| Stopbands | DC – 845 MHz, 995 – 2000 MHz |
| Stopband Attenuation | 40 dB Min |
5 customers are viewing this product
Details
This filter isolates the EGSM 900 transmit and receive bands from potential interference from other bands operating above and below these bands.
| Product Specifications | |
| Receive Band | 880-960 MHz |
| Passband Insertion Loss | 1.0 dB Max |
| Maximum Transmit Power Handling | 20 Watts (CW) |
| Operating Temperature | 0°C to +50°C |
| Connectors | N Female |
| Impedance | 50 ohms |
| Dimensions | 235mm x 43mm x 76mm |
| Passband VSWR | 1.4:1 |
| Stopbands | DC – 845 MHz, 995 – 2000 MHz |
| Stopband Attenuation | 40 dB Min |
