Microwave Filter Company

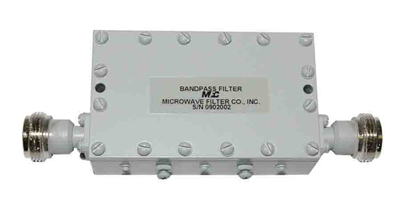

Microwave Filter Company 18774 Wireless Bandpass Filter
Product Code:
18774
Condition:
New
Weight:
1.00 KGS
Width:
7.09
(cm)
Height:
2.13
(cm)
Depth:
4.22
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
| Product Specifications | |
| Passband or Center Frequency (Fo) | 2550 MHz (Fo) |
| Insertion Loss | 0.5 dB typ 1 dB max |
| VSWR | 1.5:1 max |
| Rel. (3 dB) Bandwidth | 130 MHz typ |
| Rejection | 45 dB typ @ 2400 MHz, 30 dB min @ 2430 MHz, 30 dB min @ 2567 MHz |
| Package - Size | 2.79” x 1.66” x 0.84” |
5 customers are viewing this product
Details
| Product Specifications | |
| Passband or Center Frequency (Fo) | 2550 MHz (Fo) |
| Insertion Loss | 0.5 dB typ 1 dB max |
| VSWR | 1.5:1 max |
| Rel. (3 dB) Bandwidth | 130 MHz typ |
| Rejection | 45 dB typ @ 2400 MHz, 30 dB min @ 2430 MHz, 30 dB min @ 2567 MHz |
| Package - Size | 2.79” x 1.66” x 0.84” |
