Microwave Filter Company

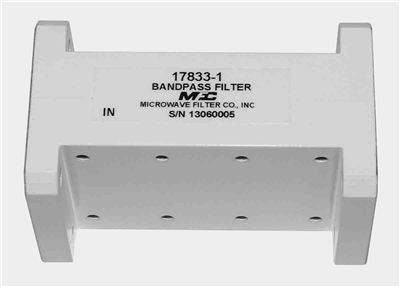

Microwave Filter Company 17833-1 Ku(Low)Band Transmit Reject Filter
Product Code:
17833-1
Condition:
New
Weight:
0.12 KGS
Width:
6.60
(cm)
Height:
3.80
(cm)
Depth:
3.80
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
This compact filter was designed specifically for Ku-(low) band transmit rejection with minimal effect on the Ku-(low) receive band.
Ideal for ARABSAT and other Ku-(low) band Receive Applications.
Alternate Flange Configurations are Available Upon Request.
| Product Specifications | |
| Passband | 10.70 - 11.75 GHz |
| Insertion Loss | 0.15 dB |
| VSWR (Max) | 1.20:1 |
| Rejection | 85 dB Min |
| Flanges | WR75 Cover & Grooved |
| Weight | 0.12 kg |
| Dimensions | 66mm x 38mm x 38mm |
| Finish | Gloss White Lacquer |
| Reject Band | 12.75 - 13.25 GHz |
5 customers are viewing this product
Details
This compact filter was designed specifically for Ku-(low) band transmit rejection with minimal effect on the Ku-(low) receive band.
Ideal for ARABSAT and other Ku-(low) band Receive Applications.
Alternate Flange Configurations are Available Upon Request.
| Product Specifications | |
| Passband | 10.70 - 11.75 GHz |
| Insertion Loss | 0.15 dB |
| VSWR (Max) | 1.20:1 |
| Rejection | 85 dB Min |
| Flanges | WR75 Cover & Grooved |
| Weight | 0.12 kg |
| Dimensions | 66mm x 38mm x 38mm |
| Finish | Gloss White Lacquer |
| Reject Band | 12.75 - 13.25 GHz |
