Microwave Filter Company

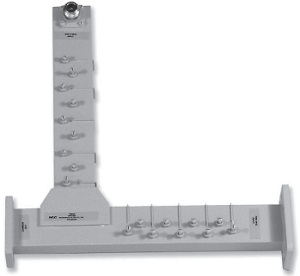

Microwave Filter Company 16940 STL (7 GHz) / ISM (5.8 GHz) Diplexer
Product Code:
16940-X
Condition:
New
Weight:
1.00 KGS
Width:
10.75
(cm)
Height:
2.69
(cm)
Depth:
10.25
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
Model 16940 This diplexer allows broadcasters to run their station’s IP operations (ISM band) through the same antenna as their broadcast auxiliary services (STL band).
The model 16940 provides a low band path (5.725-5.850 GHz) for the unlicensed ISM feed and a high band path (6.875 - 7.125 GHz) for the STL feed.
• Optimizes Performance
– No need to “patch-in” the ISM through the STL antenna via “lossy” circulator/filter assemblies.
• Saves Revenue
– Eliminates the need for a separate ISM antenna system.
– Eliminates the need for a separate STL (7 GHz) filter.
| Specifications | |
| Passbands | Low band: 5.725-5.850 GHz High band: 6.875-7.125 GHz |
| Passband Loss | Low band: 0.1 dB Typ; 0.2 dB Max High band: 0.2 dB Typ; 0.3 dB Max |
| Passband Return Loss | 20 dB Min |
| Power Rating (CW) | 5 Watts Max |
| Mutual Isolation | 60 dB Typ; 50 dB Min |
| Interface | N Female (Low band port) CMR137 (High band port) CPR137F (Common port) |
| Interface | |||
| Model | Lowband | Highband | Common |
| 16940 | N-female | CMR137 | CPR137 |
| 16940-CMR | N-female | CMR137 | CMR137 |
| 16940-CPR | N-female | CPR137 | CPR137 |
| 16940-UG344 | N-female | CMR137 | UG344 |
5 customers are viewing this product
Details
Model 16940 This diplexer allows broadcasters to run their station’s IP operations (ISM band) through the same antenna as their broadcast auxiliary services (STL band).
The model 16940 provides a low band path (5.725-5.850 GHz) for the unlicensed ISM feed and a high band path (6.875 - 7.125 GHz) for the STL feed.
• Optimizes Performance
– No need to “patch-in” the ISM through the STL antenna via “lossy” circulator/filter assemblies.
• Saves Revenue
– Eliminates the need for a separate ISM antenna system.
– Eliminates the need for a separate STL (7 GHz) filter.
| Specifications | |
| Passbands | Low band: 5.725-5.850 GHz High band: 6.875-7.125 GHz |
| Passband Loss | Low band: 0.1 dB Typ; 0.2 dB Max High band: 0.2 dB Typ; 0.3 dB Max |
| Passband Return Loss | 20 dB Min |
| Power Rating (CW) | 5 Watts Max |
| Mutual Isolation | 60 dB Typ; 50 dB Min |
| Interface | N Female (Low band port) CMR137 (High band port) CPR137F (Common port) |
| Interface | |||
| Model | Lowband | Highband | Common |
| 16940 | N-female | CMR137 | CPR137 |
| 16940-CMR | N-female | CMR137 | CMR137 |
| 16940-CPR | N-female | CPR137 | CPR137 |
| 16940-UG344 | N-female | CMR137 | UG344 |
Download
| Download Name | |
| Microwave Filter Company 16940 Datasheet | |
