Microwave Filter Company

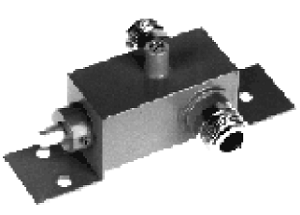

Microwave Filter Company 14001-1 BAS (2 GHz) Tunable Notch Filter
Product Code:
14001-X
Condition:
New
Weight:
1.00 KGS
Width:
9.80
(cm)
Height:
2.50
(cm)
Depth:
4.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
Model 14001-1
This filter protects (2 GHz) BAS channel operations from other (undesired) BAS channel transmissions or any other potential source of interference between (1900 - 2400) MHz.
Features:
- Coarse Tune and Self-Locking Fine Tune Adjustments for Smooth Operation
- Minimal Impact on Desired Carrier(s)
- Cascade Multiple Units for Additional Notch Depth or to Suppress Several Carriers
| Product Specifications Model 14001-1 | |
| Application | Tunable Notch |
| Notch (Fo) Tuning Range | 1900 - 2400 MHz |
| Notch Depth | 25 dB Approx |
| Bandwidth | ± 25 dB Approx. from Fo |
| Impedance | 50 ohms |
| Connectors | N - Female |
| Dimensions | 98 mm x 40 mm x 25 mm |
| Finish | Gray Lacquer |
5 customers are viewing this product
Details
Model 14001-1
This filter protects (2 GHz) BAS channel operations from other (undesired) BAS channel transmissions or any other potential source of interference between (1900 - 2400) MHz.
Features:
- Coarse Tune and Self-Locking Fine Tune Adjustments for Smooth Operation
- Minimal Impact on Desired Carrier(s)
- Cascade Multiple Units for Additional Notch Depth or to Suppress Several Carriers
| Product Specifications Model 14001-1 | |
| Application | Tunable Notch |
| Notch (Fo) Tuning Range | 1900 - 2400 MHz |
| Notch Depth | 25 dB Approx |
| Bandwidth | ± 25 dB Approx. from Fo |
| Impedance | 50 ohms |
| Connectors | N - Female |
| Dimensions | 98 mm x 40 mm x 25 mm |
| Finish | Gray Lacquer |
Download
| Download Name | |
| Microwave Filter Company 14001-1 Datasheet | |
