Iridium

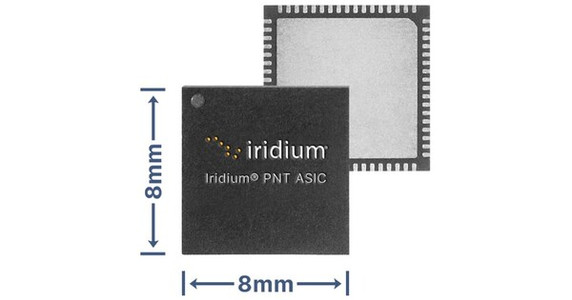

Iridium PNT ASIC
Product Code:
PNT ASIC
Condition:
New
Weight:
0.20 KGS
Width:
0.80
(cm)
Height:
0.09
(cm)
Depth:
0.80
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The Iridium PNT ASIC’s ultra-compact design supports standalone Iridium PNT receivers or hybrid Iridium + GNSS solutions while reducing development complexity and accelerating time to market.
Key Features
- 8 mm x 8mm ASIC designed to accommodate a range of form factors
- Familiar interfaces that resemble typical GPS/GNSS receivers for quick adoption
- Built-in RF and power regulators that cut complexity
- Secure, on-chip firmware storage that streamlines deployment
- Chip package conforms to industry standards (JEDEC MO-220)
- Outputs National Marine Electronics Association (NMEA) 0183 interface standard messages
- Integrated and optimized Iridium PNT RF section
- Static and dynamic positioning modes
- Physical interface to any UART-based GNSS receiver
- Provides protected and resilient timing and position outputs
| Product Specifications | |
| Mechanical | |
| Dimensions (L x W x H) | 68 QFN 8 mm x 8 mm x 0.85 mm |
| Environmental | |
| Operating Temperature Range | -20 °C to 70 °C |
| Storage Temperature Range | -55 °C to 150 °C |
| Power | |
| Power Input | 3.3 V DC |
| Power Draw | approx. 1 W |
5 customers are viewing this product
Details
The Iridium PNT ASIC’s ultra-compact design supports standalone Iridium PNT receivers or hybrid Iridium + GNSS solutions while reducing development complexity and accelerating time to market.
Key Features
- 8 mm x 8mm ASIC designed to accommodate a range of form factors
- Familiar interfaces that resemble typical GPS/GNSS receivers for quick adoption
- Built-in RF and power regulators that cut complexity
- Secure, on-chip firmware storage that streamlines deployment
- Chip package conforms to industry standards (JEDEC MO-220)
- Outputs National Marine Electronics Association (NMEA) 0183 interface standard messages
- Integrated and optimized Iridium PNT RF section
- Static and dynamic positioning modes
- Physical interface to any UART-based GNSS receiver
- Provides protected and resilient timing and position outputs
| Product Specifications | |
| Mechanical | |
| Dimensions (L x W x H) | 68 QFN 8 mm x 8 mm x 0.85 mm |
| Environmental | |
| Operating Temperature Range | -20 °C to 70 °C |
| Storage Temperature Range | -55 °C to 150 °C |
| Power | |
| Power Input | 3.3 V DC |
| Power Draw | approx. 1 W |
Download
| Download Name | |
| Iridium PNT ASIC Datasheet | |
