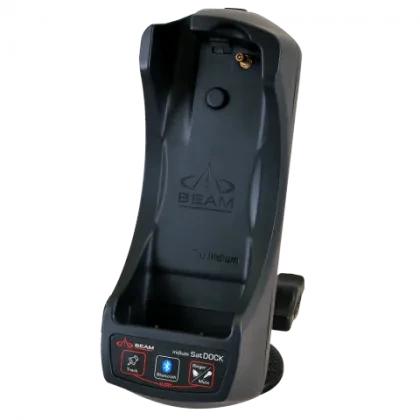

Iridium Beam SatDOCK-G Docking Station for Iridium 9555
Product Code:
IR-SatDOCK-G
Condition:
New
Weight:
0.30 KGS
Width:
7.50
(cm)
Height:
6.50
(cm)
Depth:
20.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The Beam SatDOCK-G in-vehicle dock provides a high-quality semi-permanent installation for the Iridium 9555 satellite handset, enabling hands-free voice calling capabilities with superior echo cancelling technology. Tracking & Alert functionality is available via the dedicated in-built GPS engine. With Bluetooth connectivity also built-in and backed by a 2-year warranty, it's the perfect choice.
Key Features
Dual antenna connectors
Supports either Iridium only antenna or dual mode installation to support GPS
Hands-Free Interface
Allows for in-vehicle use, enabling quality hands-free calls with echo cancellation and noise reduction support. It also has an in-built Bluetooth module for voice connectivity.
GPS Tracking
Tracking messages can be pre-configured to support periodic reporting, manual position report update via button press, remote polling or sending of emergency alert messages all via SMS/SMS-to-email or SBD (Short Burst Data).
Ringer Capabilities
The SatDOCK-G 9555 has an internal ringer that sounds during an incoming call. Ring can also be directed to the external speaker or the vehicle horn with additional components. The ring modes can be changed by a press of the Ringer button, when out of call.
| Product Specifications | |
| Mechanical | |
| Dimensions (L x W x H) | 200mm x 75mm x 65mm |
| Weight | 300 g |
| Iridium Embedded Technology | Iridium 9555 |
| Environmental | |
| Operating Temperature Range | -20 to +70°C |
| Operating Humidity Range | <85 % RH |
| Storage Temperature Range | -30 to +70°C |
| Storage Humidity Range | 93 % RH |
| RF Interface | |
| Frequency Range | 1616 – 1626.5 MHz |
| GPS | |
| Accuracy, Positional | Position 2.5mCEP, Velocity 0.1m/s, Timing 300ns m |
| GPS TTFF | Cold 29sec, Hot 1sec s |
| Operational Limits, Altitude | Altitude 18000m m |
| Operational Limits, Velocity | Velocity 515m/s m/s |
| Power | |
| Input Voltage Range | 9 - 32 VDC |
| Maximal Current | 700 mA |
| Maximal Power | 8.4 W |
| Idle Current Average | 3 average mA |
