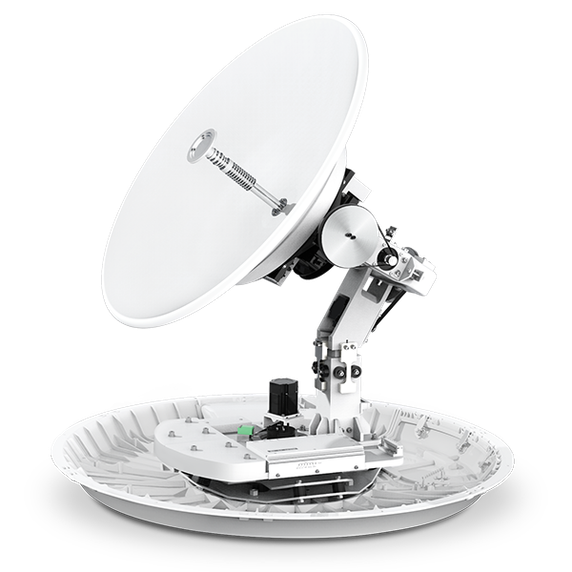

Intellian v85NX Ka 85CM Ka -Ku Convertible Maritime VSAT Antenna System

Higher RF Performance

Intellian’s highly efficient RF design delivers superior performance compared to other 80 cm class systems, enabling higher data rates and global operation. The compact 85 cm antenna’s smaller footprint allows installation on smaller vessels, yet still allows the system to operate on a 1-meter designed network. The v85NX Ka delivers improved tracking precision and reliability in a compact and streamlined mechanical design. The system comes standard with a 5W BUC or can be upgraded with 10W BUC variations.

Future Proof Communications

The v85NX Ka can be easily converted from Ka to Ku operation by changing the center-mounted RF Assembly and Feed using an available conversion kit. The frequency tuned reflector and radome ensure maximum performance across both Ka- and Ku- bands.

Single Coaxial Cable

The v85NX Ka combines Tx, Rx, and DC power in a single cable solution, enabling faster installation and reduced costs. Dynamic Motor Brakes eliminate the requirement of shipping brackets, and the Dome-On external RF cable connection on the base allows faster and easier installation without removing the radome.

Embedded Dual Antenna Mediator

Intellian’s new ACU fully supports dual antenna operation without additional complexity and components such as a separate mediator and RF splitters. Streamlined configuration of the dual antenna operation is done via AptusNX.

Standardized Modular Components Across NX Series

Modular components are used throughout the NX range, such as dynamically braked motors with integrated encoders, and a Main Control Unit. The sharing of common modules across Intellian’s NX antenna series reduces the number of spare parts by more than 30%.

AptusNX Intelligent Diagnostics

AptusNX, Intellian’s all new integrated M&C platform, provides a responsive user interface to manage antenna systems. It also has an intelligent diagnosis function for accurate and enhanced antenna monitoring, and provides detailed reports and measurement for convenient maintenance.
