Intellian

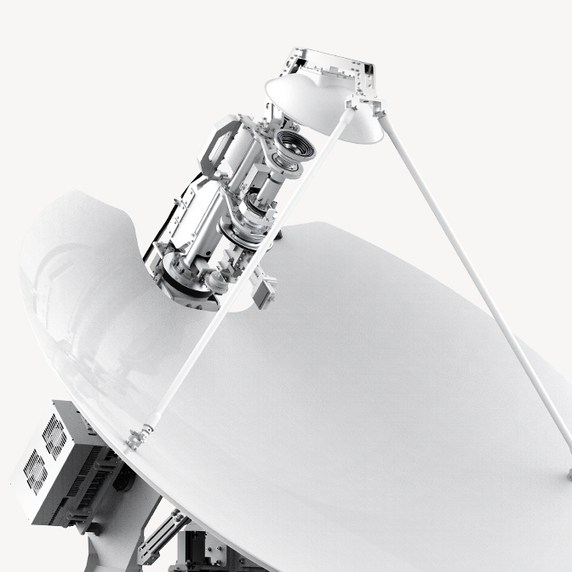

Intellian v240M 2 2.4m Dual-band Multi-orbit VSAT Antenna System
Product Code:
VM2-24C
Condition:
New
Weight:
1,133.00 KGS
$178,206.15 - $223,626.15
The v240M 2 is the world’s first Dual-band and Multi-orbit antenna system that enables communication services on two different frequency bands with the capability to track Geostationary Earth Orbit (GEO) or Medium Earth Orbit (MEO) satellites.
Automatic Frequency Band Switching
It allows automatic switching between C- and Ku-band without user intervention and enables the operator to select the optimum solution for the geographic location.
Best In-Class RF Performance
The upgraded design assures consistent RF performance on C- and Ku-bands to enable high -speed, high-quality connectivity for high-bandwidth demanding users.
Future Proof Design
Ka-band upgrade kit will allow the addition of Ka-band communication including future NGSO networks and MEO operation can be enabled using the Intelligent Mediator.
High Power BUC Support
Various BUC options can be selected up to 400W in both C- and Ku-bands to allow user customization.
| TECHNICAL SPECIFICATIONS | |
| PHYSICAL | |
| Radome Height | 431 cm / 169.5” |
| Radome Diameter | 391 cm / 154” |
| Reflector Diameter | 240 cm / 94.5” |
| Antenna Weight | 1,133 kg / 2,498 lbs |
| STABILIZED PEDESTAL ASSEMBLY | |
| Platform | 3-axis / Azimuth, Elevation, Cross-level |
| Azimuth Range | Unlimited |
| Elevation Range | -15 to +120º |
| Cross-level Range | Up to 30° |
| Stabilization Accuracy | 0.2° peak mispointing @ max ship motion |
| Motor Brake System | Elevation, Cross level |
| REFLECTOR & FEED ASSEMBLY | |
| Tx Frequency | C-band : 5.85 GHz ~ 6.425 GHz Ku-band : 13.75 GHz ~ 14.5 GHz |
| Tx Gain | C-band : 42.0 dBi @ 6.14 GHz Ku-band : 48.6 dBi @ 14.25 GHz |
| Rx Frequency | C-band : 3.625 GHz ~ 4.2 GHz Ku-band : 10.7 GHz ~ 12.75 GHz |
| Rx Gain | C-band : 38.4 dBi @ 3.91 GHz Ku-band : 47.7 dBi @ 11.85 GHz |
| G/T (Incl. Radome) | C-band : 19.0 dB/K @ 3.91 GHz Ku-band : 28.0 dB/K @ 12.75 GHz |
| BUC Power | C-band up to 400 W Ku-band up to 400 W |
| Polarization | C-band : Circular & Linear Ku-band : Linear (Cross Pol & Co Pol) |
5 customers are viewing this product
Details
The v240M 2 is the world’s first Dual-band and Multi-orbit antenna system that enables communication services on two different frequency bands with the capability to track Geostationary Earth Orbit (GEO) or Medium Earth Orbit (MEO) satellites.
Automatic Frequency Band Switching
It allows automatic switching between C- and Ku-band without user intervention and enables the operator to select the optimum solution for the geographic location.
Best In-Class RF Performance
The upgraded design assures consistent RF performance on C- and Ku-bands to enable high -speed, high-quality connectivity for high-bandwidth demanding users.
Future Proof Design
Ka-band upgrade kit will allow the addition of Ka-band communication including future NGSO networks and MEO operation can be enabled using the Intelligent Mediator.
High Power BUC Support
Various BUC options can be selected up to 400W in both C- and Ku-bands to allow user customization.
| TECHNICAL SPECIFICATIONS | |
| PHYSICAL | |
| Radome Height | 431 cm / 169.5” |
| Radome Diameter | 391 cm / 154” |
| Reflector Diameter | 240 cm / 94.5” |
| Antenna Weight | 1,133 kg / 2,498 lbs |
| STABILIZED PEDESTAL ASSEMBLY | |
| Platform | 3-axis / Azimuth, Elevation, Cross-level |
| Azimuth Range | Unlimited |
| Elevation Range | -15 to +120º |
| Cross-level Range | Up to 30° |
| Stabilization Accuracy | 0.2° peak mispointing @ max ship motion |
| Motor Brake System | Elevation, Cross level |
| REFLECTOR & FEED ASSEMBLY | |
| Tx Frequency | C-band : 5.85 GHz ~ 6.425 GHz Ku-band : 13.75 GHz ~ 14.5 GHz |
| Tx Gain | C-band : 42.0 dBi @ 6.14 GHz Ku-band : 48.6 dBi @ 14.25 GHz |
| Rx Frequency | C-band : 3.625 GHz ~ 4.2 GHz Ku-band : 10.7 GHz ~ 12.75 GHz |
| Rx Gain | C-band : 38.4 dBi @ 3.91 GHz Ku-band : 47.7 dBi @ 11.85 GHz |
| G/T (Incl. Radome) | C-band : 19.0 dB/K @ 3.91 GHz Ku-band : 28.0 dB/K @ 12.75 GHz |
| BUC Power | C-band up to 400 W Ku-band up to 400 W |
| Polarization | C-band : Circular & Linear Ku-band : Linear (Cross Pol & Co Pol) |
