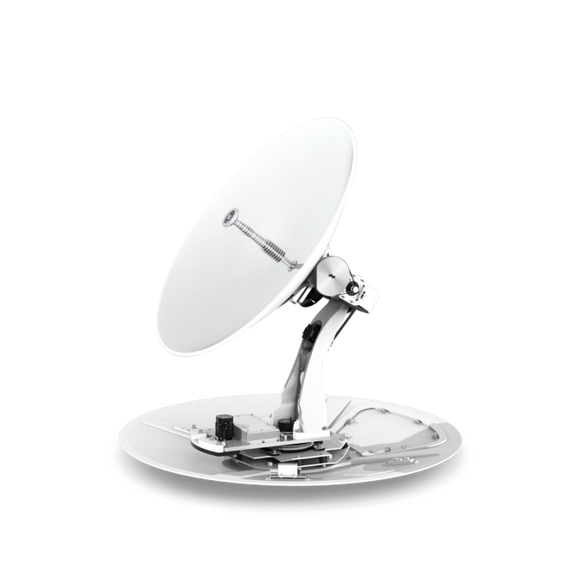

Intellian v100E 1.05m Ku-band Maritime VSAT Antenna System incl 6W (NJRC) BUC & PLL LNB
Product Code:
VE-11-E1YN
Condition:
New
Weight:
121.00 KGS
Width:
164.00
(cm)
Height:
156.00
(cm)
Depth:
162.00
(cm)
$49,000.00
Advanced Performance and Design
Intellian’s advanced RF design and technology delivers highly effi cient performance, including enhanced tracking precision compared to other 1 m class systems. The v100E has a compact and streamlined mechanical design to produce a light weight and robust antenna, maintaining high levels of reliability and performance that are compulsory in a Maritime environment.
Simplified Installation
Through advanced design and understanding of the Maritime user requirements, the v100E delivers a simplifi ed installation process and cost savings. Unlike conventional antenna installations, the v100E does not require the radome to be opened, as the requirement for shipping brackets has been removed.
Antenna Management Platform
Intellian’s all-new integrated M&C platform AptusNX provides a responsive web user interface to manage and control the antenna system regardless of device types. The Installation Wizard in AptusNX automates functions for system confi guration so that operators are minimally involved in system installation and operation.
Single Cable Solution
The v100E includes a single cable, combining Tx, Rx and DC power into one single solution. This allows for a faster and more cost-eff ective installation, as well as easier troubleshooting and maintenance.
| TECHNICAL SPECIFICATIONS | |
| ABOVE DECK UNIT | |
| Radome Height | 145.9 cm / 57.44” |
| Radome Diameter | 137.9 cm / 54.29” |
| Reflector Diameter | 105 cm / 41.33” |
| ADU Weight | 121 kg / 266.7 lbs |
| Platform | 3-axis / Azimuth, Elevation, Cross-level |
| Azimuth Range | Unlimited |
| Elevation Range | -15°to +110° |
| Cross-level Range | Up to ± 35° |
| Stabilization Accuracy | 0.2° max in presence of specifi ed ship motions |
| Tx Frequency | 13.75 ~ 14.5 GHz Ku-band |
| Tx Gain | 42 dBi @ 14.25 GHz (excl. radome) |
| Rx Frequency | 10.7 ~ 12.75 GHz Ku-band |
| Rx Gain | 40.5 dBi@11.7 GHz (excl. radome) |
| G/T | 19.8 dB/K@12.75 GHz (Clear Sky, 30° Elevation) |
| BUC Power | 6W |
| LNB | Universal PLL LNB |
| Polarization | Linear, Cross-pol Only |
| Antenna Cable | Single 50-ohm Coax Cable for Rx, Tx, FSK, Reference and Power from ACU to CDU |
| ANTENNA CONTROL UNIT | |
| Dimensions (WxDxH) | 43.1 cm x 35.0 cm x 4.4 cm / 17” x 13.8” x 1.7” |
| Weight | 5.2 kg / 11.5 Ibs |
| LED Indicator | 6 LEDs for Power, INT/Search, Tracking, Lock, Setup, Error |
| Gyrocompass Interface | NMEA 0183 |
| Modem Interface | Ethernet port / RS-232C, -422C / I/O Console |
| Remote Management | Yes |
| Management Port | Yes |
| Intellian LAN Port | Yes |
| Power Requirement | 100 ~240 VAC, 50~60Hz, 3A |
