Intellian
Intellian C1-10-G00S C100M GMDSS System
Product Code:
C1-10-G00S
Condition:
New
Weight:
7.30 KGS
Width:
34.80
(cm)
Height:
49.90
(cm)
Depth:
29.10
(cm)
$6,500.00
Intellian’s Iridium Certus® 100 GMDSS System
Intellian has developed a shipboard GMDSS system based on Iridium’s Certus 100 and the Iridium GMDSS System. As required by SOLAS, all the core components and accessories are MED approved (Wheelmarked).
Intellian’s Iridium Certus GMDSS Systems (C100M, C200M and C700) are part of a wider portfolio of modern, coherently designed, GMDSS equipment that includes a VHF Class A, MF/HF Class A and NAVTEX.
Product Features
- 100% Global Coverage
- Iridium Certus® GMDSS Service
- SOLAS approved (Wheelmark approval)
- Safety Voice, Safety Messaging & MSI
- Distress Alert & Distress Voice
- Coaxial & NMEA2000 antenna cable connections
- 1 x High-Quality Voice Line
- 7” IPS TFT Full Touch Screen
- Supports non-emergency communications
- SSAS & LRIT functions supported
- Full set of accessories including power supply and optional keyboards
- Pole Mount designed for 1”, 1-1/2” and 2” poles is included
- Excellent warranty (3yrs parts + 3yrs labor at the factory)

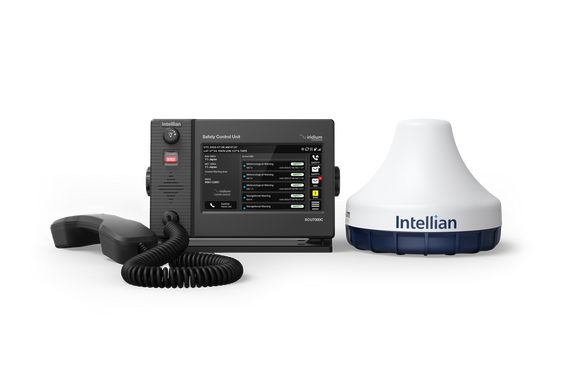

Consists of following items:
- C100M (ADU)
- Safety Control Unit (SCU)
- Handset & Cradle
- Pole Mount Kit
- Operation Manual
| System Configuration | |
| C100M GMDSS SATELLITE COMMUNICATION SYSTEM | |
| Certifications & Standards | MED (Wheelmark), MER, Maritime CE,FCC, ISED, RED, RoHS 2, Iridium®, KC |
| Vibration, operational | IEC 60945 |
| Vibration, shock | Half sine 20 g/11 ms |
| C100M ADU | |
| Dimension | 170 x158 mm / 6.69” x 6.22” |
| Weight | 1.6 kg / 3.5 lb |
| Tx Frequency | 1616 MHz ~ 1626.5 MHz |
| Rx Frequency | 1616 MHz ~ 1626.5 MHz |
| ADU Connectore | TNC female & NMEA 2000 (A “pigtail” accessory is available to connect the below deck end of the NMEA200 cable to the SCU) |

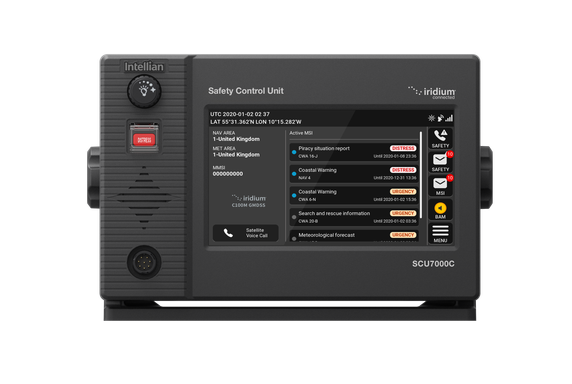

| SAFETY CONTROL UNIT (SCU) | |
| Display | 7” IPS TFT Full Touch Screen (1024 x 600) |
| Dimension | with Bracket: 254 x 167 x 100 mm / 10.0” x 6.6” x 3.9” w/o Bracket: 239 x 155 x 100 mm / 9.4” x 6.1” x 3.9” |
| Weight | 1.2 kg / 2.6 lb |
| DC Input | 24 VDC |
| IP Rate | IP34 |
| Temperature (Oper.) | -25°C to +55°C (-13°F to +131°F) |
| HANDSET & CRADLE | |
| Weight (HS + wire) | 0.4 kg / 0.88 lb |
| Dimensions | 82 x 236 x 76 mm / 3.2” x 9.3” 2.99” |
| Temperature (Oper.) | -15°C to +55°C (+5°F to +131°F) |
| IP rating | IP32 |
5 customers are viewing this product
Details
Intellian’s Iridium Certus® 100 GMDSS System
Intellian has developed a shipboard GMDSS system based on Iridium’s Certus 100 and the Iridium GMDSS System. As required by SOLAS, all the core components and accessories are MED approved (Wheelmarked).
Intellian’s Iridium Certus GMDSS Systems (C100M, C200M and C700) are part of a wider portfolio of modern, coherently designed, GMDSS equipment that includes a VHF Class A, MF/HF Class A and NAVTEX.
Product Features
- 100% Global Coverage
- Iridium Certus® GMDSS Service
- SOLAS approved (Wheelmark approval)
- Safety Voice, Safety Messaging & MSI
- Distress Alert & Distress Voice
- Coaxial & NMEA2000 antenna cable connections
- 1 x High-Quality Voice Line
- 7” IPS TFT Full Touch Screen
- Supports non-emergency communications
- SSAS & LRIT functions supported
- Full set of accessories including power supply and optional keyboards
- Pole Mount designed for 1”, 1-1/2” and 2” poles is included
- Excellent warranty (3yrs parts + 3yrs labor at the factory)
Consists of following items:
- C100M (ADU)
- Safety Control Unit (SCU)
- Handset & Cradle
- Pole Mount Kit
- Operation Manual
| System Configuration | |
| C100M GMDSS SATELLITE COMMUNICATION SYSTEM | |
| Certifications & Standards | MED (Wheelmark), MER, Maritime CE,FCC, ISED, RED, RoHS 2, Iridium®, KC |
| Vibration, operational | IEC 60945 |
| Vibration, shock | Half sine 20 g/11 ms |
| C100M ADU | |
| Dimension | 170 x158 mm / 6.69” x 6.22” |
| Weight | 1.6 kg / 3.5 lb |
| Tx Frequency | 1616 MHz ~ 1626.5 MHz |
| Rx Frequency | 1616 MHz ~ 1626.5 MHz |
| ADU Connectore | TNC female & NMEA 2000 (A “pigtail” accessory is available to connect the below deck end of the NMEA200 cable to the SCU) |
| SAFETY CONTROL UNIT (SCU) | |
| Display | 7” IPS TFT Full Touch Screen (1024 x 600) |
| Dimension | with Bracket: 254 x 167 x 100 mm / 10.0” x 6.6” x 3.9” w/o Bracket: 239 x 155 x 100 mm / 9.4” x 6.1” x 3.9” |
| Weight | 1.2 kg / 2.6 lb |
| DC Input | 24 VDC |
| IP Rate | IP34 |
| Temperature (Oper.) | -25°C to +55°C (-13°F to +131°F) |
| HANDSET & CRADLE | |
| Weight (HS + wire) | 0.4 kg / 0.88 lb |
| Dimensions | 82 x 236 x 76 mm / 3.2” x 9.3” 2.99” |
| Temperature (Oper.) | -15°C to +55°C (+5°F to +131°F) |
| IP rating | IP32 |
