Hiboost

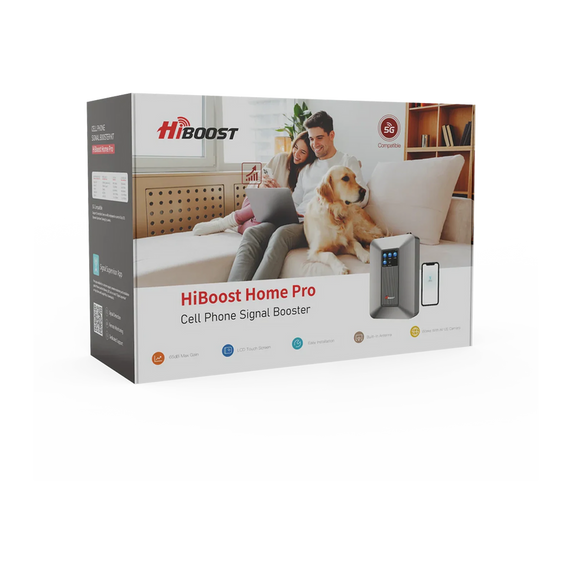

HiBoost F10GIB-5S-BTW Home Pro
Product Code:
F10GIB-5S-BTW
Condition:
New
Weight:
1.20 KGS
Width:
23.60
(cm)
Height:
5.00
(cm)
Depth:
17.00
(cm)
$499.00

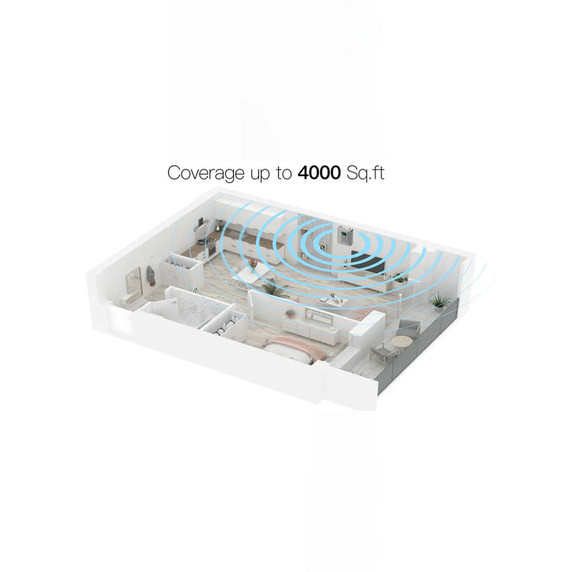

The HiBoost Home Pro is engineered for professional installation in large commercial or residential environments. Delivering up to 65dB system gain and coverage up to 4,000 sq.ft, it ensures reliable inbuilding coverage across all major U.S. and Canadian carriers.
Featuring high-linearity amplifiers and a wide dynamic range, the amplifier delivers clean amplification even in fringe-signal areas. Its built-in antenna ensures easy, hassle-free installation. Touch LCD screen shows everything about the amplifier. Integrated Automatic and Manual Gain Control enable precise optimization, while remote diagnostics via the Signal Supervisor platform streamline maintenance.
Fully compatible with 5G DSS, 4G LTE, and legacy networks for voice and data reliability.
Key Features
- Performance o Up to 65 dB system gain with high-power uplink for extended tower reach
Full-band coverage: Bands 12/17, 13, 5, 25/2, 4
Low noise figure (≤ 6 dB) and wide dynamic range for cleaner amplification
AGC / MGC enable fine-tuned optimization o Consistent throughput for simultaneous multi-user operation
- Reliability & Compliance o FCC Part 20 / ISED certified — carrier-safe operation
Integrated thermal protection, oscillation detection, and auto-shutdown safeguards
24/7 continuous duty design built for demanding installations
- Integration & Monitoring
Signal Supervisor remote monitoring (iOS / Android) with live diagnostics
LCD touch screen for local control and gain adjustment
N-Type connectors, 50 Ω impedance — compatible with professional coax and accessories
- Deployment Versatility
Supports built-in indoor antenna
Ideal for large homes, offices
Pairs with high-quality splitters, couplers, and low-loss coax assemblies for scalable systems
| TECHNICAL SPECIFICATIONS | |
| Working Band | Band 12/17 / Band 13 / Band 5 / Band 25/2 / Band 4 |
| UL Frequency Range(MHz) | 698-716 / 776-787 / 824-849 / 1850-1915 / 1710-1755 |
| DL Frequency Range(MHz) | 728-746 / 746-757 / 869-894 / 1930-1995 / 2110-2155 |
| Supported Standards | 5G DSS, LTE, HSPA+, EVDO, WCDMA, GSM |
| Max Gain | 65dB |
| Max Output Power | DL 10 dBm |
| MGC (Step Attenuation) | ≥ 25 dB / 1 dB step |
| Noise Figure | ≤ 6 dB typ. |
| I/O Port | N-Female |
| Inpedance | 50 ohm |
| Power Supply | Input AC 100-240V, 50/60 Hz, Output DC 12V/3A |
| Power Consumption | ≤ 18 W |
| Environment | –25 °C to +55 °C (<85% RH) |
| Environment Conditions | IP40 |
| Dimensions | 9.3 x 6.7 x 2 in / 236 x 170 x 50 mm |
| Weight | ≤ 2.65 lbs / 1.2 kg |
| Certification | FCC / ISED |
5 customers are viewing this product
Details
The HiBoost Home Pro is engineered for professional installation in large commercial or residential environments. Delivering up to 65dB system gain and coverage up to 4,000 sq.ft, it ensures reliable inbuilding coverage across all major U.S. and Canadian carriers.
Featuring high-linearity amplifiers and a wide dynamic range, the amplifier delivers clean amplification even in fringe-signal areas. Its built-in antenna ensures easy, hassle-free installation. Touch LCD screen shows everything about the amplifier. Integrated Automatic and Manual Gain Control enable precise optimization, while remote diagnostics via the Signal Supervisor platform streamline maintenance.
Fully compatible with 5G DSS, 4G LTE, and legacy networks for voice and data reliability.
Key Features
- Performance o Up to 65 dB system gain with high-power uplink for extended tower reach
Full-band coverage: Bands 12/17, 13, 5, 25/2, 4
Low noise figure (≤ 6 dB) and wide dynamic range for cleaner amplification
AGC / MGC enable fine-tuned optimization o Consistent throughput for simultaneous multi-user operation
- Reliability & Compliance o FCC Part 20 / ISED certified — carrier-safe operation
Integrated thermal protection, oscillation detection, and auto-shutdown safeguards
24/7 continuous duty design built for demanding installations
- Integration & Monitoring
Signal Supervisor remote monitoring (iOS / Android) with live diagnostics
LCD touch screen for local control and gain adjustment
N-Type connectors, 50 Ω impedance — compatible with professional coax and accessories
- Deployment Versatility
Supports built-in indoor antenna
Ideal for large homes, offices
Pairs with high-quality splitters, couplers, and low-loss coax assemblies for scalable systems
| TECHNICAL SPECIFICATIONS | |
| Working Band | Band 12/17 / Band 13 / Band 5 / Band 25/2 / Band 4 |
| UL Frequency Range(MHz) | 698-716 / 776-787 / 824-849 / 1850-1915 / 1710-1755 |
| DL Frequency Range(MHz) | 728-746 / 746-757 / 869-894 / 1930-1995 / 2110-2155 |
| Supported Standards | 5G DSS, LTE, HSPA+, EVDO, WCDMA, GSM |
| Max Gain | 65dB |
| Max Output Power | DL 10 dBm |
| MGC (Step Attenuation) | ≥ 25 dB / 1 dB step |
| Noise Figure | ≤ 6 dB typ. |
| I/O Port | N-Female |
| Inpedance | 50 ohm |
| Power Supply | Input AC 100-240V, 50/60 Hz, Output DC 12V/3A |
| Power Consumption | ≤ 18 W |
| Environment | –25 °C to +55 °C (<85% RH) |
| Environment Conditions | IP40 |
| Dimensions | 9.3 x 6.7 x 2 in / 236 x 170 x 50 mm |
| Weight | ≤ 2.65 lbs / 1.2 kg |
| Certification | FCC / ISED |
