Groundcom

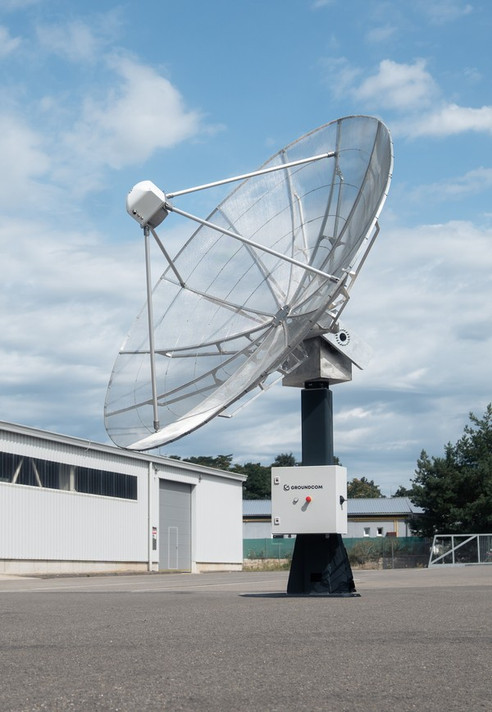

Groundcom GCS-S1 S-Band Ground Station
Product Code:
GCS-S1v2
Condition:
New
Weight:
900.00 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
Groundcom GCS-S1 is a turn-key, low-cost ground station solution for the satellite missions that meets all the new space demands.
GCS-S1 is designed for satellite operations, TT&C and payload data downlink, especially to support Earth Observation (EO) or telecommunication satellite constellations on LEO.
| Specification | |
| Antenna and radio | |
| Frequency [MHz] | Tx: 2025 - 2120 Rx: 2200 - 2300 |
| Antenna Type | Antenna Type Prime-focus fed parabolic reflector |
| Antenna Diameter [m] | 3 |
| Beamwidth¹ [°] | 3.1 |
| Antenna Gain [dBi] | >34 |
| EIRP [dBW] | 49 |
| G/T [dB/K] | 11 |
| Polarization | Polarization LHCP/RHCP (remotely switchable) |
| Modulation | Customizable |
| Data types | Customizable |
| Motion | |
| Rotator Range Of Motion | Azimuth: 0-720°, Elevation²: 0-180° |
| Tracking Accuracy [°] | 0.6 |
| Pointing Accuracy [°] | 0.2 |
| Angular Velocity [°/s] | >15 |
| Tracking | Software track based on TLE³ |
| Operation | |
| Power supply (max.) | 2,3A@230 VAC / 4,8A@115 VAC, 45-65 Hz |
| (Air-condit. unit) | TBD |
| Back-up fuse [A] | 2 x 16 , char. C |
| Temperature [°C] | -20 to +55 |
| Max. wind during operation (without/with radome) [km/h] |
75/180 |
| Weight (without/with radome) [kg] |
ca. 450-500/900 |
| Height (radome) [m] | 4.19 |
| Width (radome) [m] | 3.85 |
| Control | |
| API commands | YES |
| GUI SW | YES |
| Satellite database | YES |
| Scheduling | YES |
| Real time monitoring | YES |
| Remote access | YES |
| Data storage | YES |
| ¹ Full Width at Half Maximum beamwidth ² Includes elevation flip to remove key-hole effect ³ Two line element data |
|
5 customers are viewing this product
Details
Groundcom GCS-S1 is a turn-key, low-cost ground station solution for the satellite missions that meets all the new space demands.
GCS-S1 is designed for satellite operations, TT&C and payload data downlink, especially to support Earth Observation (EO) or telecommunication satellite constellations on LEO.
| Specification | |
| Antenna and radio | |
| Frequency [MHz] | Tx: 2025 - 2120 Rx: 2200 - 2300 |
| Antenna Type | Antenna Type Prime-focus fed parabolic reflector |
| Antenna Diameter [m] | 3 |
| Beamwidth¹ [°] | 3.1 |
| Antenna Gain [dBi] | >34 |
| EIRP [dBW] | 49 |
| G/T [dB/K] | 11 |
| Polarization | Polarization LHCP/RHCP (remotely switchable) |
| Modulation | Customizable |
| Data types | Customizable |
| Motion | |
| Rotator Range Of Motion | Azimuth: 0-720°, Elevation²: 0-180° |
| Tracking Accuracy [°] | 0.6 |
| Pointing Accuracy [°] | 0.2 |
| Angular Velocity [°/s] | >15 |
| Tracking | Software track based on TLE³ |
| Operation | |
| Power supply (max.) | 2,3A@230 VAC / 4,8A@115 VAC, 45-65 Hz |
| (Air-condit. unit) | TBD |
| Back-up fuse [A] | 2 x 16 , char. C |
| Temperature [°C] | -20 to +55 |
| Max. wind during operation (without/with radome) [km/h] |
75/180 |
| Weight (without/with radome) [kg] |
ca. 450-500/900 |
| Height (radome) [m] | 4.19 |
| Width (radome) [m] | 3.85 |
| Control | |
| API commands | YES |
| GUI SW | YES |
| Satellite database | YES |
| Scheduling | YES |
| Real time monitoring | YES |
| Remote access | YES |
| Data storage | YES |
| ¹ Full Width at Half Maximum beamwidth ² Includes elevation flip to remove key-hole effect ³ Two line element data |
|
Download
| Download Name | |
| Groundcom GCS-S1 S-Band Ground Station Datasheet | |
