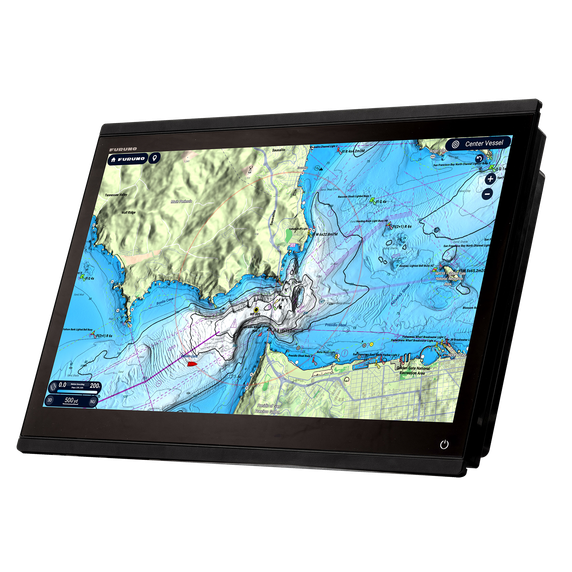

Furuno TZT22X NavNet TZtouchXL Chart Plotter, 22" All-Glass IPS Display FULL HD (1920x1080)

Explore the future of navigation with NavNet TZtouchXL - extra-large, wide 16", 22", and 24" all-glass Multi Function Displays with exceptional clarity from all angles that enhance the functionality and style of your helm. Or go with the hybrid controls of the 10" & 13" options that make navigating intuitive and easy under any sea conditions, no matter the size of your vessel. NavNet TZtouchXL delivers the ability to tailor the helm to meet the captain's exact needs, with magnetron or Solid-State Doppler Radars, high-powered Fish Finders, AIS, Autopilot, and Deep Water Multibeam Sonar options, and more!

NavNet TZtouchXL delivers new features like TZ MAPS with BathyVision, the most advanced and capable electronic charts in the world. The TZ Maps engine draws upon a worldwide database of high-resolution information to create crisp, clear navigation with a variety of color themes and fishing charts with fully editable color palettes. TZ Maps deliver a timeless navigation experience at any magnification. It sounds incredible, and it is - you have to see it to believe it!

A Dream Machine for Fishing Fanatics

We've raised the bar for sportfishing enthusiasts once again with an MFD series designed to cater to the needs of avid anglers. The NavNet TZtouchXL series includes all the features fishermen desire, including exclusive, never-before-seen features in recreational navigation devices. The TZT10X, TZT13X, and TZT16X feature a built-in 1kW TruEcho™ CHIRP or CW Fish Finder as well as built-in 230kHz or 455kHz CHIRP Side-Scan to show fish and fish-hoarding structure in great detail port to starboard, providing crucial insights for successful fishing trips. The TZT22X and TZT24X have full control across the NavNet network, and you can tailor the system with a wide array of high-powered Fish Finders for deep dropping.

Deep Water Multibeam Sonar

Normal down-sounding Fish Finders have a beam angle of 40˚ or less. But with the DFF3D Multibeam Sonar, you'll see a 120-degree swath, offering seafloor coverage up to 3X water depth. Plus, with the power of the DFF3D, you can see fish directly below the boat 300m (nearly 1,000ft). The DFF3D's versatile operating modes give you a better understanding of fish targets than any normal Fish Finder can deliver. The 3D sounder history provides an intuitive and easy-to-understand 3D image of the seafloor, along with fish school icons - useful when selecting a fishing hot spot or assessing the seabed condition. Triple-Beam mode tells you not only the depth but also the direction (port/down/starboard) of fish targets. Cross Section display the real-time sea column echo in a 120˚ swath, and Side-Scan displays the shape and structure of targets both port and starboard.

Effortless Control

You asked for the simplest interface possible, and we were listening. We’ve delivered the most intuitive UI available, bar-none, and you’ll be navigating with all the power and simplicity you demand. If you swipe your phone, you can operate TZtouchXL. With edge-swipe features and single-tap menu options, you’re never more than a tap or swipe away from what you want to see or do, because NavNet TZouchXL provides the easiest and most powerful MFD on the planet.

See more with TZ MAPS

With TZ MAPS, navigators control what map data they want to download, such as incredibly wide chart areas, satellite photos, and bathymetric data. Purchase incredibly wide chart areas directly from the MFD! Custom depth color shading and bathymetric data overlays create navigational charts of unmatched detail and clarity, rendered with a variety of color themes to provide an electronic charting experience that goes far beyond any premium chart service before it. You can create your own custom objects or make updates to charted objects, such as buoys, so when they move from their previously charted positions, they can be updated on the system on the fly. Custom user objects can be shared with other registered TZ MAPS users through TimeZero's new moderated service, and can be turned on and off in the Layers menu, available with a single edge swipe up from the bottom of the display. Purchase of any TZ MAPS area also unlocks added functionality, such as powerful AI Routing that intelligently plans out routes, taking into consideration the boat's draft as well as charted depths and navigational obstacles. The purchase of any TZ MAPS chart unlocks those charts in the free TZ iBoat app for mobile devices such as a phone or tablet, providing you with a free home planning app that will transfer your points and routes directly to the TZtouchXL. With a free TimeZero account, waypoints and routes can be easily backed up or retrieved from the cloud with just a few taps, ensuring all the data you’ve worked so hard to create remains safe and secure.

Experience 'off-the-charts' bathymetric data with BathyVision

BathyVision for TZ MAPS provides truly ‘off the charts’ bathymetric data with contour lines that can be configured with a single tap. When we say configurable, we’re talking down to a resolution of a mere 3 inches between contours - that's 3x better than any other bathymetric chart currently on the market. Bathymetric data is rendered from the same high-resolution database used for TZ MAPS’ custom depth shading and can be overlaid onto the navigation charts to create fishing charts unlike any seen before.

Keep ahead of the conditions with TZ Weather

TZ Weather delivers enhanced situational awareness and forecasting for mariners worldwide. The free TZ Weather service delivers global and regional weather predictions from NOAA's Global Forecast System (GFS) for any area you determine. A premium subscription service provides the ability to download higher-resolution data from a number of global models, including ICON, NAM CONUS, Arpège, and AROME. You can configure your MFD to download the latest weather immediately on startup.

TZ Weather offers detailed and localized forecasts, allowing you to select forecast duration, resolution, and data models tailored to your needs. The streamlined Weather Timeline & Layers interface makes it easy to view and interact with forecasts, while animated particles, wind barbs, and color shading provide an intuitive representation of changing conditions. Additional tools such as Meteograms and customizable presets help you pinpoint the best departure times and assess evolving weather patterns at specific locations.

Find your safe harbor with Dynamic Mooring

Dynamic Mooring, revolutionizes the way boaters select safe anchorages by integrating real-time weather forecasts with TZ MAPS advanced mapping technology. With just a date selection and the current weather forecast downloaded, the system automatically analyzes the coming wind conditions and topography to provide a clear, color-coded mooring status: green for protected, orange for partially protected, and red for exposed. These mooring locations are extracted from high-resolution vector maps and enhanced by contributions from the TIMEZERO “Community Maps” network, ensuring an up-to-date and comprehensive anchorage database.
