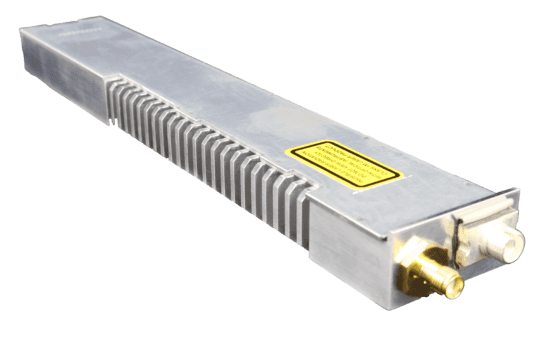

ETL Systems L-Band GENUS StingRay RF over Fibre module with 22KHz tone and 13V/18V LNB power
Product Code:
SRY-G1S-TS2-179 | SRY-G1S-RS2-180
Condition:
New
Weight:
0.20 KGS
Width:
3.80
(cm)
Height:
1.90
(cm)
Depth:
25.30
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
L-Band GENUS StingRay RF over Fibre module with 22KHz tone and 13V/18V LNB power
StingRay L-band Transmit and Receive RF Over Fibre modules to fit Genus 1U chassis or ODU. The transmit module can provide LNB power 13/18VDC, 22kHz tone up to 500 mA. When fitted with a 10 MHz distributing module the TX/RX module can inject an external or internal 10 MHz tone onto the L-band feed.
| RF Parameters | |||
| Model Numbers | SRY-G1S-TS2-179 | SRY-G1S-RS2-180 | |
| Frequency Range | 850-2450 MHz | ||
| Flatness (dB) | 850 - 2150MHz | ±1.5 dB, Fixed gain mode | |
| 2150 - 2450MHz | ±2.0 dB, Fixed gain mode | ||
| Any 36MHz | ±0.25 dB, Fixed gain mode | ||
| Return Loss (db) | 50 ohm SMA | 18 dB typ., 14 dB min | 18 dB typ., 14 dB min |
| 50 ohm BNC | 18 dB typ., 14 dB min | 18 dB typ., 14 dB min | |
| 75 ohm BNC | 14 dB typ., 10 dB min | 16 dB typ., 12 dB min | |
| 75 ohm F-type | 14 dB typ., 10 dB min | 16 dB typ., 12 dB min | |
| Output AGC flatness | ±2.0 dB over full band. Input -10 to -40 dBm | ||
| Gain Setting Modes | Manual Gain Control (MGC), Automatic Gain Control (AGC), Fixed Gain (FG) | ||
| Manual Gain Range | 60 dB (in 0.5 dB steps) The MGC gain mode allows link optimisation for better Noise or Distortion performance | ||
| OIP3 Test condition: 1m fibre, 10dB gain, -22dBm tone levels | 850 - 2150MHz | 23 dBm typical, 20 dBm worst case | |
| 2150 - 2450MHz | 20 dBm typical, 17 dBm worst case | ||
| CNR (in any 36MHz) Test condition: 1m fibre, -10dBm RF i/p power, -10dBm RF o/p total power | –50 dB typical, -45 dB worst case | ||
| Noise Figure Test condition: 1m fibre, -50dBm RF i/p power, -10dBm o/p power | 9 dB typical, 12 dB worst case | ||
| Group Delay Variation | <2ns over full band. <0.5ns over any 36MHz | ||
| SFDR Test condition: 1m fibre, 10dB gain, -23dBm tone levels | 850 - 2150MHz | 107 dB/Hz^(2/3) typ., 102 dB/Hz^(2/3) min | |
| 2150 - 2450MHz | 103 dB/Hz^(2/3) typ., 98 dB/Hz^(2/3) min | ||
| RF Signal Range | Input: -70 to -10 dBm (total power) Operational i/p range Output: -70 to -10 dBm (total power) o/p range available under all i/p conditions. (Note that all Specifications are only ‘typical’ between -60 & -70 dBm unless otherwise detailed). | ||
| Max RF Input | +16 dBm total power. Damage level, NOT operational. | ||
| 10MHz Level at Output | -10 to +10 dBm. User settable level via the chassis. Accuracy ±2 dB | ||
| 10MHz Isolation | -40 dB, between adjacent modules in same chassis. | ||
| Laser Type | DFB. Optical isolator for improved performance | ||
| Optical Wavelength | 1310 ± 10 nm | 1100 to 1650nm. Optimised for 1310nm and 1550 nm | |
| Optical Power | Output: 4.5 ±2.5 dBm. 3.8 dBm typical | Input: 0 to 4.5 dBmo. Max +10 dBm | |
| Optical Connectors | FC/APC , SC/APC Single mode fibre. Use angle polish connectors only | ||
| Module Dimensions | 19mm x 38mm x 253mm. 0.2kg. Genus 1U series mountable. | ||
| Power Consumption | 15W Typical. With 18V 500 mA LNB Power. | 4 W Typical | |
| LNB Power | 18/13V ±5 %, 500 mA max | ||
| Module Swap | Hot swap | ||
| MTBF | >200,000 hours. | ||
