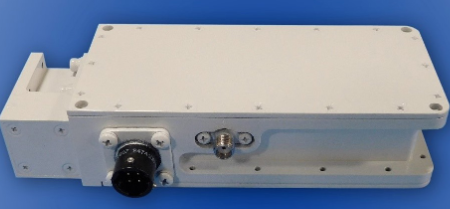

CPI LKB20S110-X2X4X Ka-Band Low Noise Amplifier (LNA) 20.2 - 21.2 GHz, 110 K, 60 dB gain, +20 dBm
Product Code:
LKB20S110-X2X4X
Availability:
YES
Weight:
10.00 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
The LKB20S110-X2X4X is a CPI Low Noise Amplifier (LNA) for Ka-Band, with 110 K (Frequency A & B only) noise temperature, 60 dB gain and +20 dBm rated output power.
Key advantages
- Wideband coverage
- Temperature Compensated Gain
- High reliability HEMT design
- Input/output isolators
- Reverse polarity protection
Key Specifications
| Band | Ka-Band |
| Input Frequency | Ka-Band: 20.20 - 21.20 GHz |
| Noise Temperature | 110 K (Frequency A & B only) |
| Gain | 60 dB typ. |
| Output Power | +20 dBm min |
| Power Configuration | 90-265 Vac, 47-63 Hz (Consult factory) |
| Color | White |
5 customers are viewing this product
Details
The LKB20S110-X2X4X is a CPI Low Noise Amplifier (LNA) for Ka-Band, with 110 K (Frequency A & B only) noise temperature, 60 dB gain and +20 dBm rated output power.
Key advantages
- Wideband coverage
- Temperature Compensated Gain
- High reliability HEMT design
- Input/output isolators
- Reverse polarity protection
Key Specifications
| Band | Ka-Band |
| Input Frequency | Ka-Band: 20.20 - 21.20 GHz |
| Noise Temperature | 110 K (Frequency A & B only) |
| Gain | 60 dB typ. |
| Output Power | +20 dBm min |
| Power Configuration | 90-265 Vac, 47-63 Hz (Consult factory) |
| Color | White |
