CPI

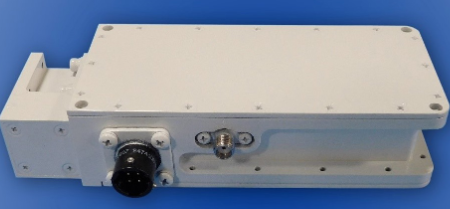

CPI LKA20S120-X2X46 Ka-Band Low Noise Amplifier (LNA) 18.2 - 20.2 GHz, 120 K, 60 dB gain, +20 dBm
Product Code:
LKA20S120-X2X46
Availability:
YES
Weight:
10.00 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
The LKA20S120-X2X46 is a CPI Low Noise Amplifier (LNA) for Ka-Band, with 120 K noise temperature, 60 dB gain and +20 dBm rated output power.
Key advantages
- Wideband coverage
- Temperature Compensated Gain
- High reliability HEMT design
- Input/output isolators
- Reverse polarity protection
Key Specifications
| Band | Ka-Band |
| Input Frequency | Ka-Band: 18.20 - 20.20 GHz |
| Noise Temperature | 120 K |
| Gain | 60 dB typ. |
| Output Power | +20 dBm min |
| Power Configuration | 90-265 Vac, 47-63 Hz (Consult factory) |
| Color | Tan |
5 customers are viewing this product
Details
The LKA20S120-X2X46 is a CPI Low Noise Amplifier (LNA) for Ka-Band, with 120 K noise temperature, 60 dB gain and +20 dBm rated output power.
Key advantages
- Wideband coverage
- Temperature Compensated Gain
- High reliability HEMT design
- Input/output isolators
- Reverse polarity protection
Key Specifications
| Band | Ka-Band |
| Input Frequency | Ka-Band: 18.20 - 20.20 GHz |
| Noise Temperature | 120 K |
| Gain | 60 dB typ. |
| Output Power | +20 dBm min |
| Power Configuration | 90-265 Vac, 47-63 Hz (Consult factory) |
| Color | Tan |
