CPI

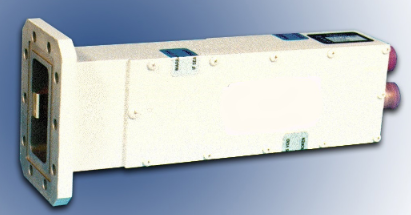

CPI LCC4S35-24 C-Band Low Noise Amplifier (LNA) 3.6 - 4.2 GHz, 35 K, +20 dBm, 90-265 VAC
Product Code:
LCC4S35-24
Condition:
New
Availability:
YES
Weight:
10.00 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
The LCC4S35-24 is a CPI Low Noise Amplifier (LNA) for C-Band, with 35 K noise temperature, +20 dBm rated output power and operating range 3.6 - 4.2 GHz.
Key advantages
- State-of-the-art noise performance
- HEMT/GaAs FET design
- Weatherproof enclosure
- Internal low-loss input isolator
- Internal regulator
Key Specifications
| Band | C-Band |
| Input Frequency | C-Band: 3.60 - 4.20 GHz |
| Noise Temperature | 35 K |
| Output Power | +20 dBm |
| Power Configuration | 90-265 Vac, 47-63 Hz |
5 customers are viewing this product
Details
The LCC4S35-24 is a CPI Low Noise Amplifier (LNA) for C-Band, with 35 K noise temperature, +20 dBm rated output power and operating range 3.6 - 4.2 GHz.
Key advantages
- State-of-the-art noise performance
- HEMT/GaAs FET design
- Weatherproof enclosure
- Internal low-loss input isolator
- Internal regulator
Key Specifications
| Band | C-Band |
| Input Frequency | C-Band: 3.60 - 4.20 GHz |
| Noise Temperature | 35 K |
| Output Power | +20 dBm |
| Power Configuration | 90-265 Vac, 47-63 Hz |
Download
| Download Name | |
| CPI LCX4SX-XX C-Band Low Noise Amplifiers Datasheet | |
