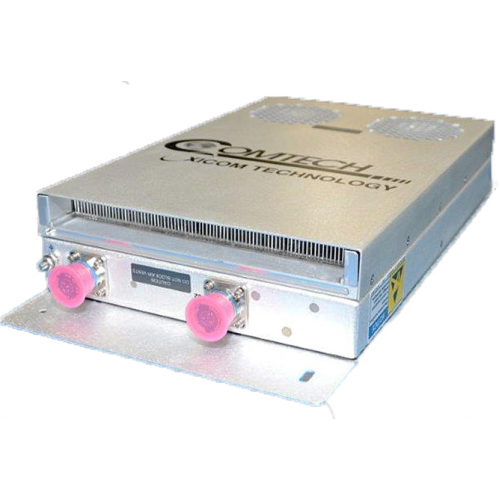

Comtech 8885-27 Falcon 40Ka 40W GaN Airborne Cabin Internal Solid-State Amplifier Ka-Band 27.5 - 28.5 GHz
Product Code:
8885-27
Weight:
6.80 KGS
Width:
45.70
(cm)
Height:
8.30
(cm)
Depth:
23.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
Key Specifications
| Band | Ka-Band |
| rf output frequency | 27.5-28.5 GHz |
Specifications
| IF Input Frequency | 950 to 1950 MHz |
| Input Level, No Damage | +10 dBm max |
| LO Reference Frequency | External 10 MHz |
| LO Reference Level | 0 dBm ± 5 dB |
| IF/REF Input Impedence | 50 ohms |
Output Rf Power And Linearity
| Eq. Saturated Power, PSAT | 40W (46 dBm) |
| Maximum CW Power, PMAX | 25W (44 dBm) |
| Linear Power, PLIN (min) | 20W (43 dBm) |
| Intermodulation Products | -25 dBc max |
Gain
| Small Signal (typical) | 70 dB |
| Gain Slope (max) | 0.04 dB/MHz |
| Gain Stability, over | 24 hours 0.5 dB p-p max |
| Gain Variation over Temp | 2.0 dB p-p max |
Noise And Spurious
| Noise Power Transmit Band | -70 dBW/4 kHz |
| Noise Power Receive Band | -140 dBW/4 kHz |
| Harmonics | -60 dBc |
| Input VSWR | 1.5:1 |
| Output VSWR | 1.3:1 |
Weight And Dimensions
| Weight | 15 lb (6.8 kg) |
| Dimensions | 9.0” x 18.0” x 3.25” |
5 customers are viewing this product
Details
Key Specifications
| Band | Ka-Band |
| rf output frequency | 27.5-28.5 GHz |
Specifications
| IF Input Frequency | 950 to 1950 MHz |
| Input Level, No Damage | +10 dBm max |
| LO Reference Frequency | External 10 MHz |
| LO Reference Level | 0 dBm ± 5 dB |
| IF/REF Input Impedence | 50 ohms |
Output Rf Power And Linearity
| Eq. Saturated Power, PSAT | 40W (46 dBm) |
| Maximum CW Power, PMAX | 25W (44 dBm) |
| Linear Power, PLIN (min) | 20W (43 dBm) |
| Intermodulation Products | -25 dBc max |
Gain
| Small Signal (typical) | 70 dB |
| Gain Slope (max) | 0.04 dB/MHz |
| Gain Stability, over | 24 hours 0.5 dB p-p max |
| Gain Variation over Temp | 2.0 dB p-p max |
Noise And Spurious
| Noise Power Transmit Band | -70 dBW/4 kHz |
| Noise Power Receive Band | -140 dBW/4 kHz |
| Harmonics | -60 dBc |
| Input VSWR | 1.5:1 |
| Output VSWR | 1.3:1 |
Weight And Dimensions
| Weight | 15 lb (6.8 kg) |
| Dimensions | 9.0” x 18.0” x 3.25” |
