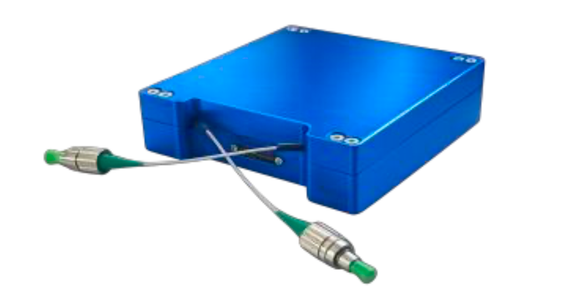

Alnair LNA-3065W Space-Grade C-Band, PM Low-Noise Optical Amplifier
Product Code:
LNA-3065W-M55-PM-M-FA_EG
Condition:
New
Weight:
1.00 KGS
Width:
9.00
(cm)
Height:
2.50
(cm)
Depth:
8.50
(cm)
$49,500.00
Single Channel C-band, -55dBm Space Grade Low Noise High Gain Optical Fiber Amplifier
Low Input Power -55dBm
Support SDA Wavelength 1536.61nm, 1553.33nm
High Gain of >40dB at Pin -55dBm
| Parameter | Specificfation | |||
| Min | Typ. | Max | Unit | |
| Grade | Pre-Engineering Model with Space Grade | |||
| Optical Properties | ||||
| Input Signal Type | Continuous Wave (CW), Single Channel | |||
| Operating Wavelength Range | 1530 | 1565 | nm | |
| Space Development Agency (SDA) Wavelength Compatible | 1536.61 or 1553.33 (Customer Define) | nm | ||
| Input Power, Pin | -55 | -40 | -10 | dBm |
| Output Power @ Pin >-50dBm | 10 | 13 | dBm | |
| Signal Gain @ Pin >-55dBm, 1553.33nm | 40 | 45 | dB | |
| Noise Figure @ Pin >-55dBm, 1553.33nm (SM Type) | 3.5 | 4.2 | dB | |
| Optical Signal to Noise Ratio (OSNR) @ Pin >-55dBm, 1553.33nm | 6 | 8 | dB | |
| Input/Output Isolation | > 30 | dB | ||
| Polarization Extinction Ratio (PER) (PM Type) | 20 | 23 | dB | |
| Input/Output Connector | FC/APC | |||
| Input/Output Fiber Type | Input SMF-28e or PMF, φ0.9mm Hytrel Pigtail 1.5m Output SMF-28e or PMF, φ0.9mm Hytrel Pigtail 2.0m |
|||
| Control, Monitor, Electrical & Mechanical Properties | ||||
| Power Monitoring | Output Power Monitor (OPM), Input Power Monitor Upon Request | |||
| Control Method | Automatic Current Control (ACC) Automatic Power Control (APC) |
|||
| PC interface | DSub-9, RS232 | |||
| Power Supply | DC +5V, 1A | |||
| Electrical Power Consumption | 2 | 3.5 | W | |
| Dimensions (Wx H x D) (Excluding Fiber Extrusion) | 90 x 25 x 85 | mm | ||
| Casing Material | Aluminum 6061-T6 | |||
| Casing Surface Treatment | ChromitAL® | |||
| Mass | 250 | g | ||
| Environment Specifciation (To Be Tested) | ||||
| Operating Case Temperature | -20 | +55 | °C | |
| Storage Temperature | -40 | +75 | °C | |
| Shocks Test (SRS, Shock Response Spectrum) | 100~1000Hz, Level (Overall Peak): 6dB/Octave 1000~10,000Hz, Level (Overall Peak): Flat at 1000g |
|||
| VibrationTest | Z Direction, Random Freq. 20~2000Hz, 20g @ 120s X, Y Direction, Random Freq. 20~2000Hz, 11.5g @ 120s |
|||
| Vaccum Thermal Test (@Pressure <10-3 Pa) | -20, +50 | °C | ||
| Radiation Test | Cobalt 60, >20krad Dose | |||
