Norsat International Inc.

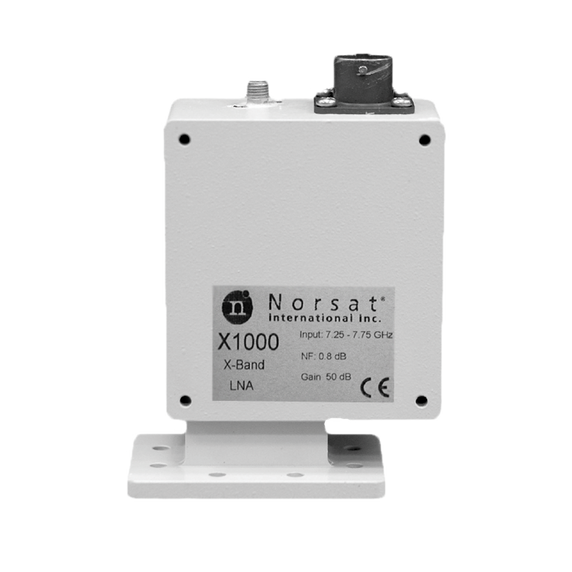

Norsat LNA-X1000S1000 Single-Band X-Band LNA

No reviews yet
Product Code: LNA-X1000S
Condition: New
Availability: YES
Weight: 0.55 KGS
Width: 7.70 (cm)
Height: 4.70 (cm)
Depth: 10.60 (cm)
$2,992.00

Norsat’s LNA’s provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard X-Band LNAs are backed by forty years of experience as the industry’s leading provider of high performance LNAs. X1000 Series.



KEY SPECIFICATIONS
Product Family 1000 Series
Band X-Band
Noise Figure 0.8 dB
Input Frequency - Band 1 X-Band: 7.25 - 7.75 GHz

RF SPECIFICATIONS
Conversion Gain 50 dBm
Gain Variation over operating band 4.0 dB p-p
Input VSWR 2.0 : 1
Output VSWR 2.0 : 1
Output P1dB compression point 10 dBm

ELECTRICAL SPECIFICATIONS
Power Requirements 15 - 24 V
Current Drain 150 mA

INTERFACE SPECIFICATIONS
RF Input Connector CPR-112G
RF Output Connector S - SMA

M & C SPECIFICATIONS
Input Power Port DC Power via MS3112E10-6P

ENVIRONMENTAL SPECIFICATIONS
Temperature - Operational -30 to +60°C
Humidity 0 - 95%

PHYSICAL SPECIFICATIONS
Dimensions (L x W x H) 106 x 77 x 47 mm
Weight 550 g
