Avcom

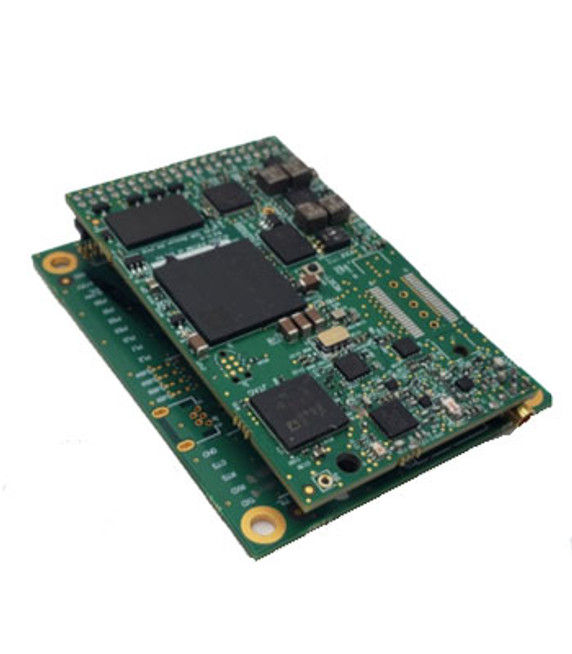

Avcom BR-MOD-1 Embedded Module L-Band Beacon Receiver
Product Code:
BR-MOD-1
Weight:
0.20 KGS
Width:
7.62
(cm)
Height:
2.70
(cm)
Depth:
8.90
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545

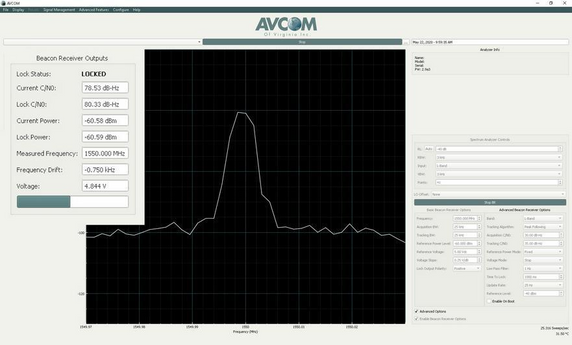

The BR-MOD Embedded Beacon Receiver is an SDR product based on the proven SBS2 Series Beacon Receiver to provide lock and track of satellite L-band beacon signals. The output voltage is proportional to the input RF level. It is the smallest SWAP-C product available, with outside dimensions of 3″ x 3.5″ x 1″ ( 7.65cm x 8.9cm x 2.68cm). It can lock and track on DVB-type modulated carriers with a unique method of CEPT (Carrier Edge Power Tracking). The included EVO GUI software allows the integrator to easily operate the receiver on a Window PC. An advanced Posix-C compliant API protocol is provided.
- Track Conventional Beacon Carrier
- Compact, Rugged Design
- For Integration in On-The-Move Applications
- Monitoring & Control (M&C) via Ethernet UART
- Integrates with Avcom’s EVO-GUI
- Comprehensive API for Easy Integration
- Extended Temperature Range
- Low SWaP (Size, Weight, and Power)
5 customers are viewing this product
Details
The BR-MOD Embedded Beacon Receiver is an SDR product based on the proven SBS2 Series Beacon Receiver to provide lock and track of satellite L-band beacon signals. The output voltage is proportional to the input RF level. It is the smallest SWAP-C product available, with outside dimensions of 3″ x 3.5″ x 1″ ( 7.65cm x 8.9cm x 2.68cm). It can lock and track on DVB-type modulated carriers with a unique method of CEPT (Carrier Edge Power Tracking). The included EVO GUI software allows the integrator to easily operate the receiver on a Window PC. An advanced Posix-C compliant API protocol is provided.
- Track Conventional Beacon Carrier
- Compact, Rugged Design
- For Integration in On-The-Move Applications
- Monitoring & Control (M&C) via Ethernet UART
- Integrates with Avcom’s EVO-GUI
- Comprehensive API for Easy Integration
- Extended Temperature Range
- Low SWaP (Size, Weight, and Power)
