Actox

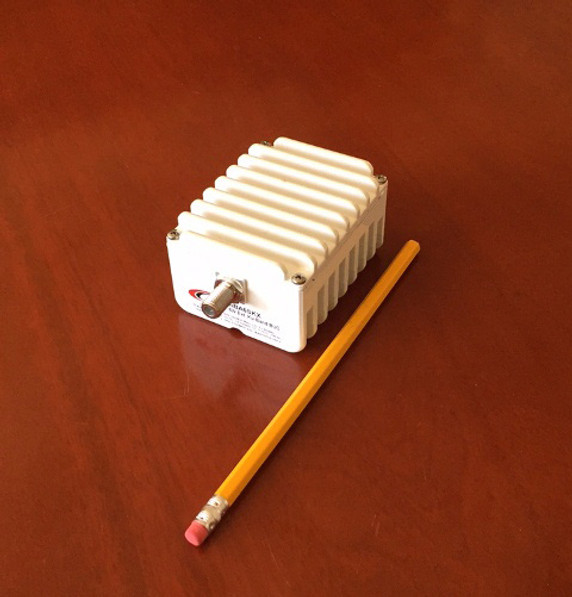

Actox ABA6SKX/ABA6SKXF - 6W Super Mini Ext. Ku-Band BUC
Product Code:
ABA6SKX/ABA6SKXF
Condition:
New
Availability:
YES
Weight:
0.34 KGS
Width:
8.40
(cm)
Height:
4.95
(cm)
Depth:
6.80
(cm)
$1,098.00
This unit features:
Output frequency 13.75-14.50 GHz
L.O. 12.80 GHz
Based on GaN technology which enables high efficiency, low energy consumption and high reliability
Smallest package size and weight
Powered through IF cable
Industry's lowest power consumption (<25W)
High power efficiency
RoHS Compliant
| Model | RF Frequency | Local Frequency | IF Frequency | Output Power | Connector |
| ABA6SKX | 13.75 to 14.50 GHz | 12.80 GHz | 950 to 1,700 MHz | 6W (+37.8 dBm min.) | N-type |
| ABA6SKXF | 13.75 to 14.50 GHz | 12.80 GHz | 950 to 1,700 MHz | 6W (+37.8 dBm min.) | F-type |
| Parameter | Value | Parameter | Value |
| Output interface | Waveguide, WR-75 G | DC power requirement | +15 to +24 V |
| Output power | +37.8 dBm minimum over temperature | Mute | Shut off the BUC if LO unlocked |
| Conversion gain | 62 dB nom. | Input interface | N-type, female (50 Ohm) |
| External reference required frequency | 10 MHz (sine-wave) | F-type, female (75 Ohm) | |
| External reference input power | -5 to +5 dBm @ input port | Power consumption | 25W max. |
| Phase noise (Exceeds Intelsat’s standard IESS308/309) | -53 dBc/Hz max. @ 10 Hz | Operating temperature | -40 to +55 degrees C |
| -63 dBc/Hz max. @ 100 Hz | Storage temperature | -55 to +85 degrees C | |
| -73 dBc/Hz max. @ 1 KHz | Vibration & shock | Complies with MIL-STD-810E | |
| -83 dBc/Hz max. @ 10 KHz | Size(mm) | 84 (L) x 68 (W) x 49.5 (H) | |
| -93 dBc/Hz max. @ 100 KHz | Weight(kg) | 0.340 (0.75lbs) (max.) | |
| -110 dBc/Hz max. @ 1 MHz | |||
| Input V.S.W.R. | 2:1 max | ||
| Output V.S.W.R. | 2:1 max | ||
5 customers are viewing this product
This unit features:
Output frequency 13.75-14.50 GHz
L.O. 12.80 GHz
Based on GaN technology which enables high efficiency, low energy consumption and high reliability
Smallest package size and weight
Powered through IF cable
Industry's lowest power consumption (<25W)
High power efficiency
RoHS Compliant
| Model | RF Frequency | Local Frequency | IF Frequency | Output Power | Connector |
| ABA6SKX | 13.75 to 14.50 GHz | 12.80 GHz | 950 to 1,700 MHz | 6W (+37.8 dBm min.) | N-type |
| ABA6SKXF | 13.75 to 14.50 GHz | 12.80 GHz | 950 to 1,700 MHz | 6W (+37.8 dBm min.) | F-type |
| Parameter | Value | Parameter | Value |
| Output interface | Waveguide, WR-75 G | DC power requirement | +15 to +24 V |
| Output power | +37.8 dBm minimum over temperature | Mute | Shut off the BUC if LO unlocked |
| Conversion gain | 62 dB nom. | Input interface | N-type, female (50 Ohm) |
| External reference required frequency | 10 MHz (sine-wave) | F-type, female (75 Ohm) | |
| External reference input power | -5 to +5 dBm @ input port | Power consumption | 25W max. |
| Phase noise (Exceeds Intelsat’s standard IESS308/309) | -53 dBc/Hz max. @ 10 Hz | Operating temperature | -40 to +55 degrees C |
| -63 dBc/Hz max. @ 100 Hz | Storage temperature | -55 to +85 degrees C | |
| -73 dBc/Hz max. @ 1 KHz | Vibration & shock | Complies with MIL-STD-810E | |
| -83 dBc/Hz max. @ 10 KHz | Size(mm) | 84 (L) x 68 (W) x 49.5 (H) | |
| -93 dBc/Hz max. @ 100 KHz | Weight(kg) | 0.340 (0.75lbs) (max.) | |
| -110 dBc/Hz max. @ 1 MHz | |||
| Input V.S.W.R. | 2:1 max | ||
| Output V.S.W.R. | 2:1 max | ||
